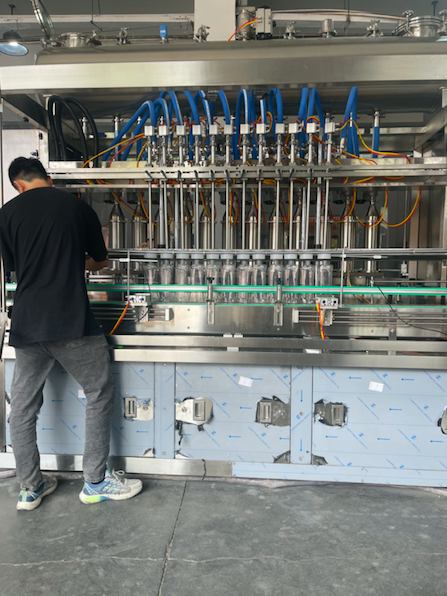

Major characteristics for 1000ML PLC controlled piston filling machine:
This is our newly developed 1000ML PLC controlled piston filling machine, It has reached the international advanced level ,partial has exceeded the similar product. It is also accepoted by the world famous chemical magnate. This is a inline piston filling machine for cream and liquid, Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head. The external surface of this piston filling machine is made of excellent stainless steel . Good appearance , applied to GMP standard.
1000ML PLC controlled piston filling machine Features:
Advanced Control System
- PLC programmable controller with touch screen operation
- User-friendly interface for easy parameter adjustment
- Each filling head can be individually adjusted for precise metering
- Photoelectric sensors and proximity switches ensure no bottle no filling
- Automatic stop and alarm function when bottles get blocked
Precision Filling Technology

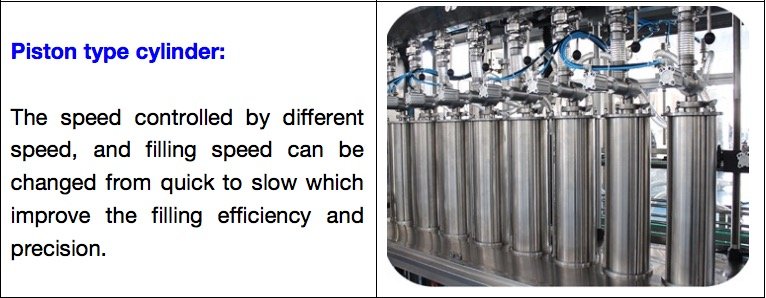

- Submerged filling method for accurate volume control
- Different material sealed piston rings to meet various product characteristics
- Filling error ≤ ±2g
- Filling range: 50-1000ml (customizable)
Safety & Protection
- Safety door threshold alarm device
- Oil-water separator with pressure monitoring
- Touch screen display with sound and light alarms
- Automatic stop when safety door is opened or pressure is abnormal
GMP Compliance
- Made according to GMP standard requirements
- Material contact parts and exposed parts made of high-quality stainless steel (SS304/SS316L)
- Fast assembly, disassembly, and cleaning convenience
- Environmental protection closed frame with tempered glass door

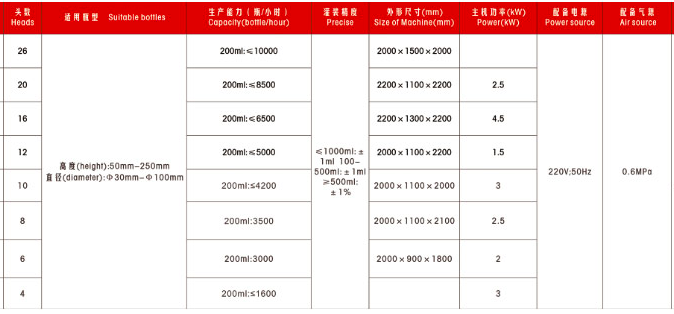

Parameters for 1000ML PLC controlled piston filling machine:
