The main characteristics of 4 wheels Servo Capping Machine for All Kinds Caps:
The servo system endows machines with exceptional sensitivity and precision, automatically adjusting clamping force and cap-rotating torque based on the material and dimensions of different bottle caps and bottles. The optimal force ensures neither excessive tightness that may damage caps or deform bottles, nor insufficient force that compromises sealing integrity. Each cap rotation becomes a precision-engineered performance, guaranteeing flawless seal adhesion and safeguarding product quality standards.
Parameters for 4 wheels Servo Capping Machine for All Kinds Caps:
1. Bottle Diameter, Width and Height: Should be determined according to Samples
2. Cap Diameter: Should be determined according to Samples
3. Power Supply: Single Phase, 220V, 60Hz
4. Conveyor Width: should be the standard width that close to 114.5mm / belt material: POM
5. Conveyor Height from Ground: 950mm ±50mm
6. The connection between the capping machine conveyor and label machine conveyor should be
by rollers connection and it’s the responsibility of the capping machine supplier.
7. The object sensors should be international brand and to be accurate for both colored and
transparent bottles.
8. Bottle block sensor between the capping machine and label machine is included from the
capping machine supplier.
9. The machine should be able to work on all caps type on the samples.
10. for the trigger caps type and pump caps type: The machine should be equipped with aligning
device to correct the cap direction to avoid breaking these caps when the cap press on the bottle.

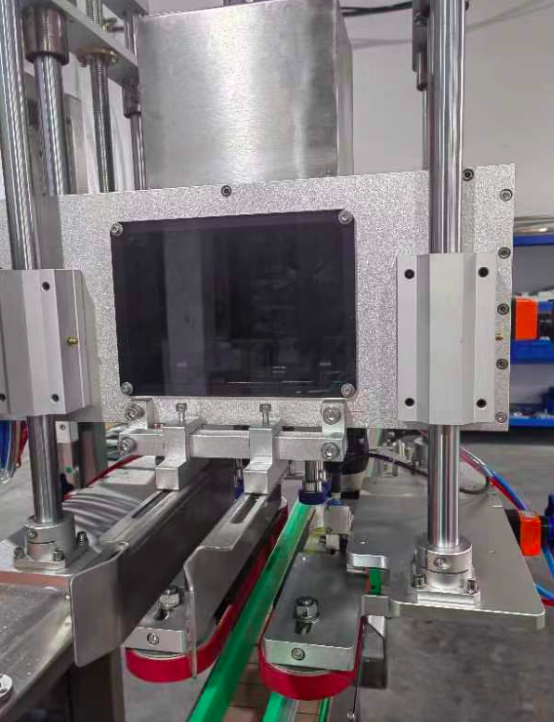

Important Parts Pictures for 4 wheels Servo Capping Machine for All Kinds Caps:
