The basic information for 8 Nozzles Linear Capping Servo Type Filling Machine:
The linear filling machine is an automated equipment designed for quantitative liquid filling, suitable for packaging production lines in industries such as daily chemical products, oils, food, pharmaceuticals, and chemicals. It can complete processes including bottle washing, filling, and cap rotation.Constructed with stainless steel, the system comprises a filling valve body, transmission positioning device, liquid collection cylinder, and electrical control system, integrating optical, mechanical, electrical, and pneumatic technologies. Operation and parameter settings are controlled via PLC programming and touchscreen interfaces.Equipped with six filling heads, it achieves a filling speed of 60-100 bottles per minute with ±1% precision, featuring leak-proof filling nozzles, a filling lifting system, and liquid level control. Containers are conveyed to the filling position via a conveyor belt, where filling heads descend to perform operations while accommodating containers of various specifications.
The control system coordinates mechanical action sequences through PLC programming :
Feeding stage: Open the one-way solenoid valve, and the cylinder retracts to create negative pressure for material suction.
Filling stage: The solenoid valve switches channels, and the cylinder pushes the piston to discharge material.
Submersible mechanism: Electric telescopic rod drives the filling head to insert into the container at a specified depth
Flow control: The flow valve adjusts the output in real-time based on preset values [3][6]
Key control components include PLC controllers, photoelectric sensors, and air switches. The control system is typically equipped with a touchscreen human-machine interface (HMI) for parameter configuration, status monitoring, and operational control
Technical parameters for 8 Nozzles Linear Capping Servo Type Filling Machine:
Filling rate: 60-100 bottles per minute
Production capacity: 600-800 bottles/hour (for specific models), with an optional range of 720-4000 bottles/hour.
Filling accuracy: ≤±1%
The filling accuracy of high-precision models can reach ±0.2% to ±0.5%.
Power source model 380V .
Air pressure 0.4-0.6 MPa
Power rating: 500W.
Available capacity options: 5-60ml, 10-125ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml
The number of filling heads is commonly 6 or higher.

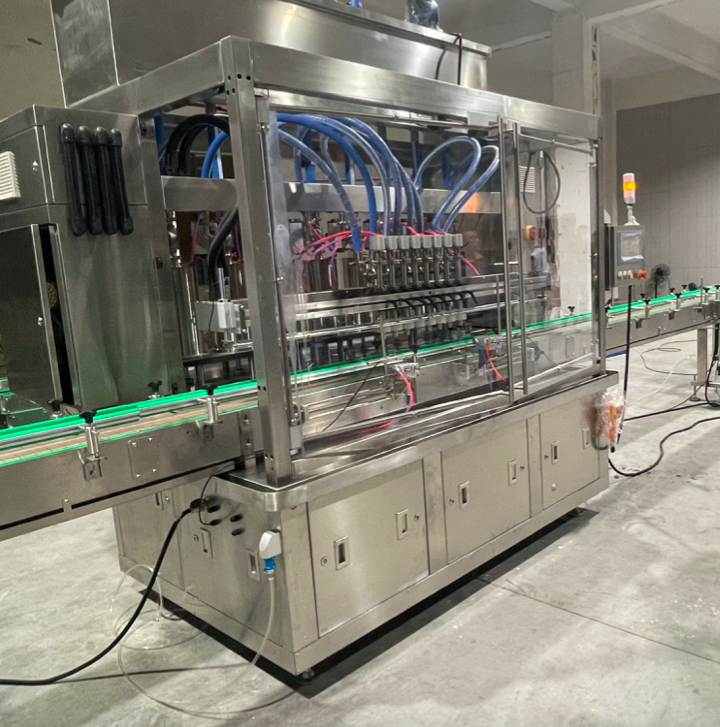

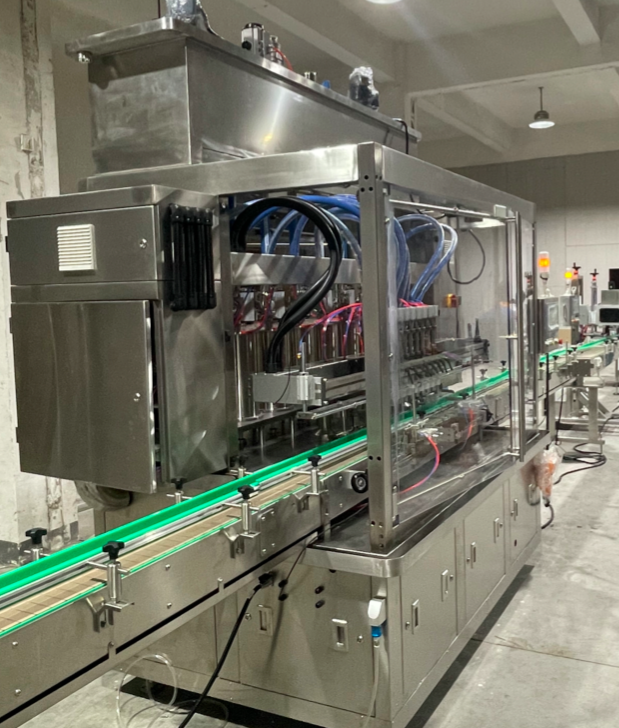

Detailed pictures for 8 Nozzles Linear Capping Servo Type Filling Machine:
