Characteristics for Automatic cosmetic filling machine/Piston filler cosmetic:
Filling controlled by servo motor ,8 nozzles fill simultaneously.
Rapid cleaning, rapid adjustment, stepless adjustment of speed for volume cylinder, suitable for filling of different specification and different liquid.
Only one adjustment necessary for filling quantity, micro-adjustment for each volume cylinder, high precision and good consistency of filling.
Contact material parts is 316L stainless steel and silicone rubber, in conformity with GMP standard.
Filling piston cylinder controlled by stepless speed adjustment of imported speed reducing motor, suitable for aqueous liquid and viscous liquid.

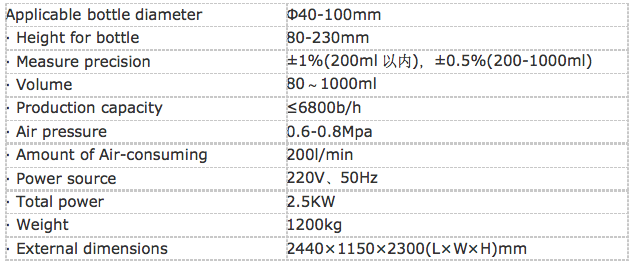

Parameters for this Automatic cosmetic filling machine/Piston filler cosmetic:
Important parts for this Automatic cosmetic filling machine/Piston filler cosmetic:
Core working principle for this Automatic cosmetic filling machine/Piston filler cosmetic:
The device typically employs piston-type volumetric metering, where a cylinder or servo motor drives the piston to reciprocate within the cylinder body. A one-way valve controls the material flow direction, enabling quantitative extraction and filling.
Control System: The system integrates PLC control systems with internationally renowned electrical components (e.g., Siemens, Schneider). Some advanced equipment utilizes servo motors and drive control systems to enable modular and independent control at each workstation.
Drip-proof design: The filling nozzle is equipped with a drip-proof device and a submersible filling nozzle design to minimize material residue and ensure a smooth filling process without stringing.
