The basic information of this Automatic Liquid Filling and Capping Packaging Machine Line:
The core system features PLC control and servo motor measurement, delivering advantages including high speed, precise accuracy, aesthetically aligned labeling positions, and clear coding. All components of the production line—except for motors and screen controls—are constructed from stainless steel plates, with material-contact surfaces utilizing specialized steel to prevent contamination during filling processes. The system incorporates six automated labeling inspection points with photoelectric detection, touchscreen software operation, and continuously variable frequency drives (CVFD) for conveyor belts, alignment guides, lifting belts, and bottle winding belts, ensuring standardized labeling accuracy and exceptional precision.

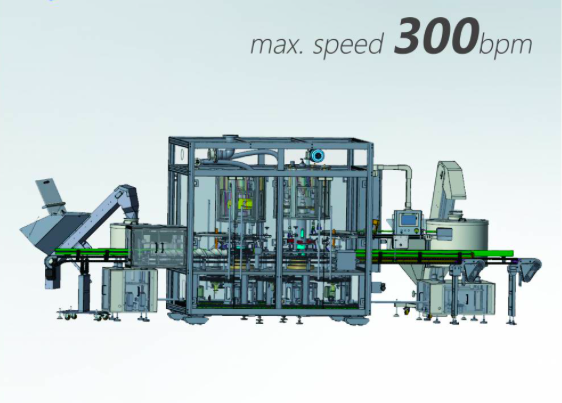

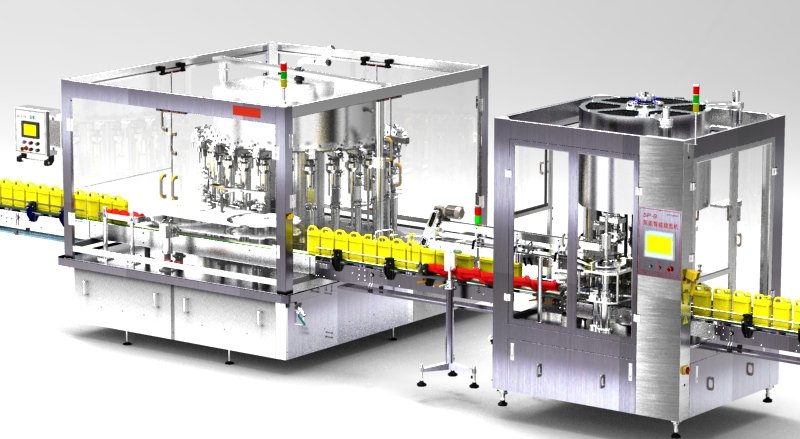

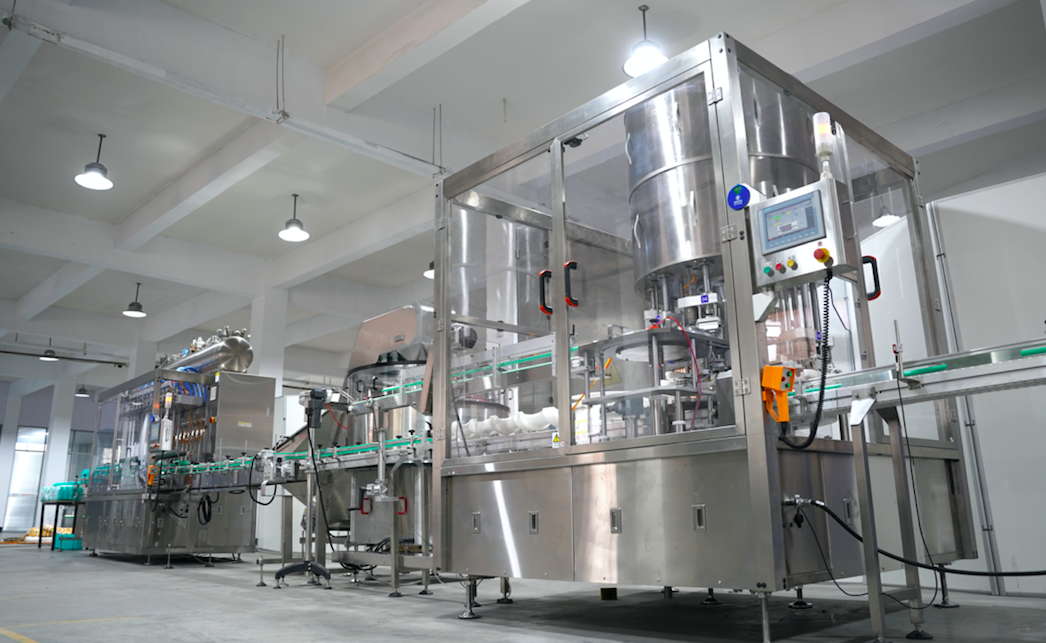

Detailed pictures for this Automatic Liquid Filling and Capping Packaging Machine Line:

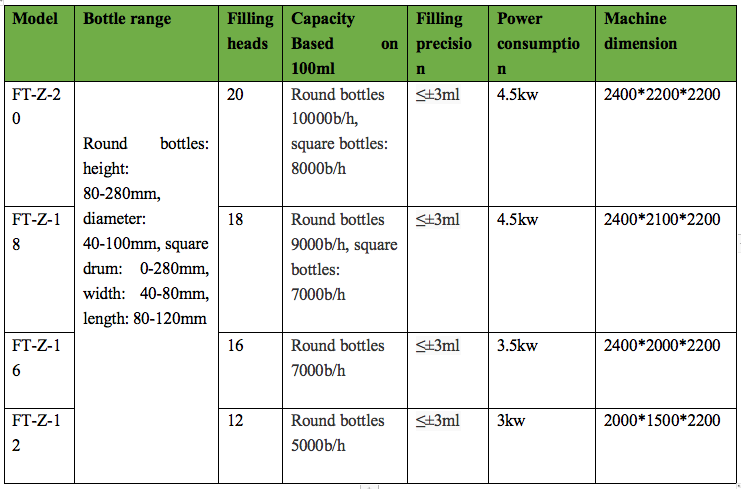

Parameters for this Automatic Liquid Filling and Capping Packaging Machine Line:
Main features for this Automatic Liquid Filling and Capping Packaging Machine Line:
Working principle: Continuous rotary operation with conformal screws for rapid and flexible bottle separation. The star wheel template guides bottles into the intermediate capping station for cap installation.
Cover rotation torque: Permanent magnet clutch;
Mechanical cam system allows rapid production switching for different bottle-shaped cams with varying specifications;
The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
