Main Features for Automatic Rotary Type Cooking Oil /Edible Oil/Olive Oil Filling Capping Machine:
1.Empty bottle screw variabledistance transmission, which can be changed according to the requirement of customer.
2.Filling using dynamic weighing measurement,accurate filling weight, stable operation of Equipment.
3.Filling weight can be adjusted according to customer requirement.
4.Equipped with centralized refueling device, which can save refueling maintenance time.
5.The height of the rinser,filler,screw capperand press capper can be adjusted according to the customer’s bottle shape with strong applicability. The adjustment power is domestic motor.
6.Capping head with pressure scale can be customized.
7.The capping machine puts the cap accuratelyand screws the cap stably. No bottle,no cap.All stainless steel welded rack, which is covered with stainless steel mask.
2.Filling using dynamic weighing measurement,accurate filling weight, stable operation of Equipment.
3.Filling weight can be adjusted according to customer requirement.
4.Equipped with centralized refueling device, which can save refueling maintenance time.
5.The height of the rinser,filler,screw capperand press capper can be adjusted according to the customer’s bottle shape with strong applicability. The adjustment power is domestic motor.
6.Capping head with pressure scale can be customized.
7.The capping machine puts the cap accuratelyand screws the cap stably. No bottle,no cap.All stainless steel welded rack, which is covered with stainless steel mask.
The main composition for this Automatic Rotary Type Cooking Oil /Edible Oil/Olive Oil Filling Capping Machine:
1.oil filling machine are mainly composed of main drive, rinsing, filling, capping, star wheel, including 50 heads of
rinsing, 50 heads of filling, 12 heads of aluminum screw cap and 10 heads of plastic press cap.
2.The equipment adopts self-developed weighing non-contact filling device, and the filling method is rotary filling, in which
includes feeding equipment, servo motor control valve opening, dynamic weighing detection device and PLC control
3.The analog controlsthe opening of the filling valve can accurately control the filling flow rate and fluid leve
4.Filling according to dynamic weighing, and it cancontrols the size of the valve opening after accurate measurement.
5.The device uses a sanitary valvefor fast response.
6.The contact between the equipment and the finished product (pipeline, filling valve) is made of SUS304 material, which meets the requirements of food machinery.
7.The equipment adopts screw way to feedthe bottle, star wheel drive, and screw drive is designed with overload detection device.
8.Equipped with human-machine interface, PLC control system and touch screen control.
2.The equipment adopts self-developed weighing non-contact filling device, and the filling method is rotary filling, in which
includes feeding equipment, servo motor control valve opening, dynamic weighing detection device and PLC control
3.The analog controlsthe opening of the filling valve can accurately control the filling flow rate and fluid leve
4.Filling according to dynamic weighing, and it cancontrols the size of the valve opening after accurate measurement.
5.The device uses a sanitary valvefor fast response.
6.The contact between the equipment and the finished product (pipeline, filling valve) is made of SUS304 material, which meets the requirements of food machinery.
7.The equipment adopts screw way to feedthe bottle, star wheel drive, and screw drive is designed with overload detection device.
8.Equipped with human-machine interface, PLC control system and touch screen control.
Main details for the Automatic Rotary Type Cooking Oil /Edible Oil/Olive Oil Filling Capping Machine:

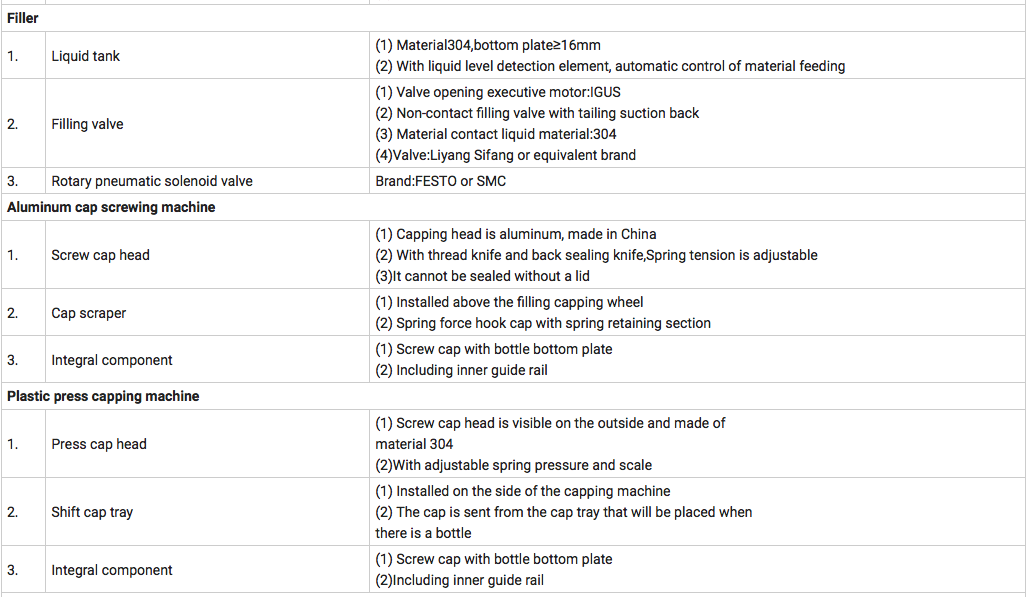

The main characteristics for this Automatic Rotary Type Cooking Oil /Edible Oil/Olive Oil Filling Capping Machine:

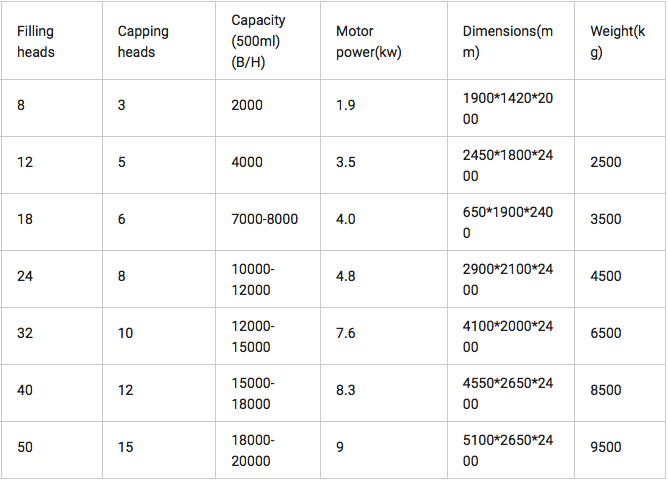

Parameters for this Automatic Rotary Type Cooking Oil /Edible Oil/Olive Oil Filling Capping Machine:
