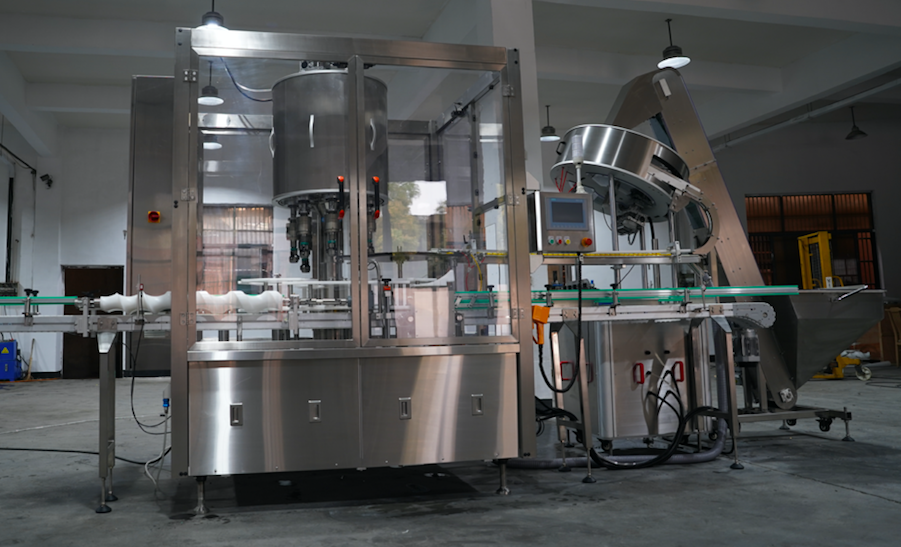

The basic information for this Automatic trigger spray capper/Trigger sprayer capper with orienting device:
The production parts of this Automatic trigger spray capper/Trigger sprayer capper with orienting device adopt a quick-change structure, with approximately 20 minutes required for product switching between different items.
The cap-tightening torque servo control requires only parameter modification on the touchscreen, offering convenient adjustment and higher torque precision.
The electronic cam achieves head lifting and lowering, accommodating a wider range of bottle heights;
The claw tip adopts a quick-release structure, achieving a lid rotation efficiency of 98%.
Reserve MES communication interface.
Parameters for this Automatic trigger spray capper/Trigger sprayer capper with orienting device:
Working performance for this Automatic trigger spray capper/Trigger sprayer capper with orienting device:
The star wheel template guides bottles into the intermediate capping station for cap installation.
Cap-tightening torque: controlled by independent servo motor;
Electronic cam with independent servo control for lifting each claw head;
The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
Modular claw head design with quick-change structure (pin-type);
Screw-free cutting design (optional);
Intermediate guide bottle assembly with bottle wheel and non-cutting design (optional)

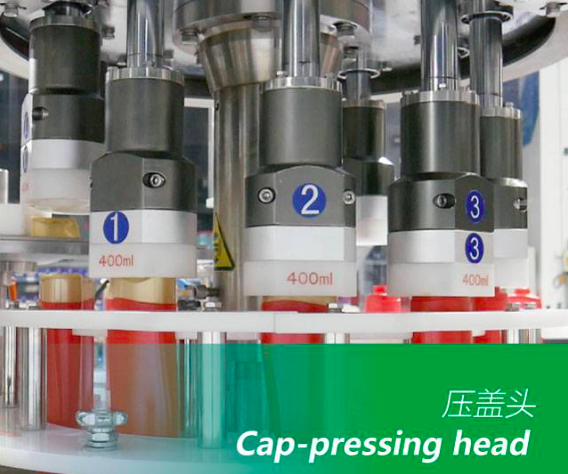

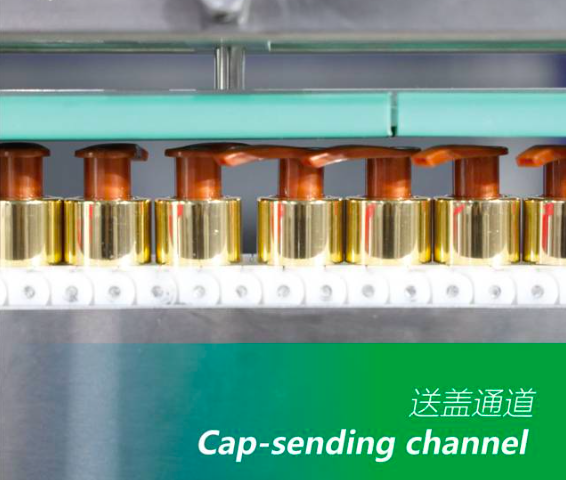

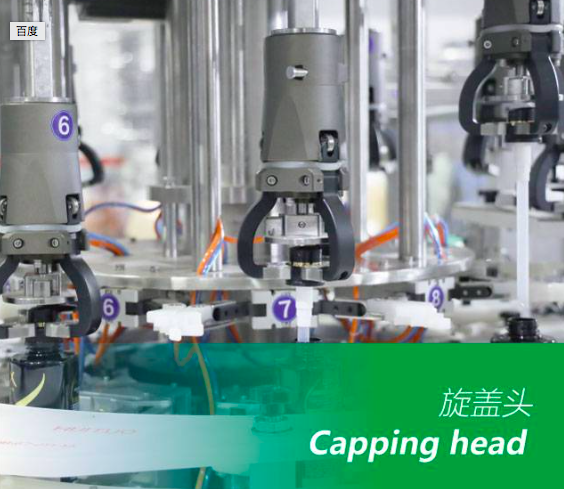

Detailed pictures for this Automatic trigger spray capper/Trigger sprayer capper with orienting device:
Configuration for this Automatic trigger spray capper/Trigger sprayer capper with orienting device:
