Basic information for Servo Rotary Capping Machine/Automatic trigger capping machine for spray bottles:
This machine is suitable for screw-capping various bottle sizes in pharmaceuticals, daily chemicals, food, and cosmetics industries.
Production capacity ranges from 50 to 200 bottles per minute, with customized specifications tailored to individual client requirements.
The production parts adopt a quick-change structure, with approximately 20 minutes required for product switching between different items.
The cap-tightening torque servo control requires only parameter modification on the touchscreen, offering convenient adjustment and higher torque precision.
The electronic cam achieves head lifting and lowering, accommodating a wider range of bottle heights;
The claw tip adopts a quick-release structure, achieving a lid rotation efficiency of 98%.
Reserve MES communication interface.

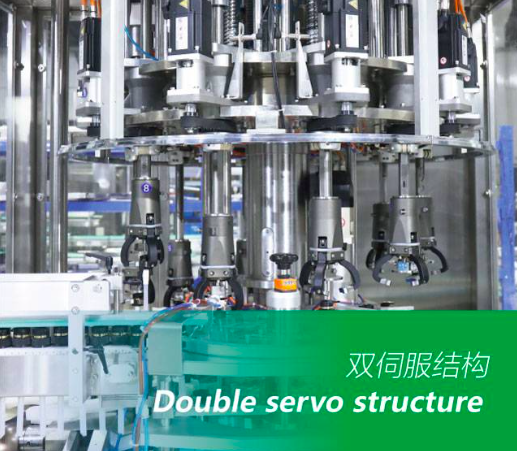

Parts inside of this Double Servo Rotary Capping Machine/Automatic trigger capping machine for spray bottles:
Performance advantages of this Double Servo Rotary Capping Machine/Automatic trigger capping machine for spray bottles:
l Working principle: Continuous rotary operation with conformal screws for rapid and flexible bottle separation. The star wheel template guides bottles into the intermediate capping station for cap installation.
l Cap-tightening torque: controlled by independent servo motor;
l Electronic cam with independent servo control for lifting each claw head;
The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
l Modular claw head design with quick-change structure (pin-type);
l Screw-free cutting design (optional);
l Intermediate guide bottle assembly with bottle wheel and non-cutting design (optional);
l Quick replacement design for outer retaining ring guard plate (optional);
l Bottle-carrying device with non-cutting design (optional).
Parameters for this Double Servo Rotary Capping Machine/Automatic trigger capping machine for spray bottles:
