Working principle for this Double sides high speed labeling machine for flat bottles/ High speed labeling machine:
After entering the labeling machine, vertical bottles are automatically rotated into a horizontal position and conveyed onto the conveyor belt. During transportation, sensors detect product passage and transmit signals to the labeling control system. The system then activates corresponding motors at optimal positions to release labels and attach them to designated product locations. As products flow through the labeling conveyor system, the conveyor belt rotates to roll labels onto the bottles. The bottles subsequently return from horizontal to vertical positioning, completing the entire label application process.
The characteristics for this Double sides high speed labeling machine for flat bottles/ High speed labeling machine:
The Double sides high speed labeling machine for flat bottles/ High speed labeling machine employs a screw-driven orientation and material separation mechanism to facilitate the transition from vertical bottle feeding to horizontal conveyance, complemented by a three-point positioning system to enhance labeling accuracy. The vertical feeding and horizontal labeling design effectively addresses the misalignment issue between feeding and labeling directions for slender bottles. An inclined conveyor belt configuration is designed to stabilize containers with unique center of gravity characteristics, such as ampoules. [3] The equipment offers integrated flexibility by enabling vertical or horizontal discharge configurations based on production line layout.

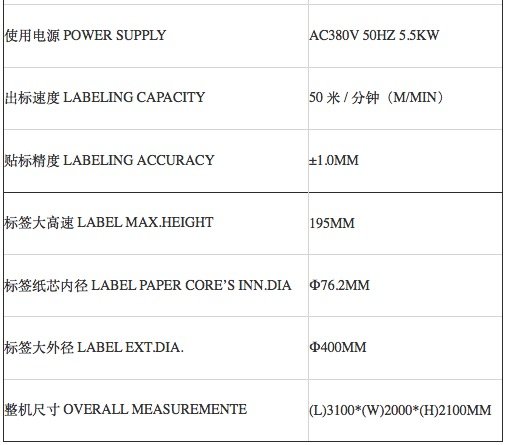

Parameters for this Double sides high speed labeling machine for flat bottles/ High speed labeling machine:

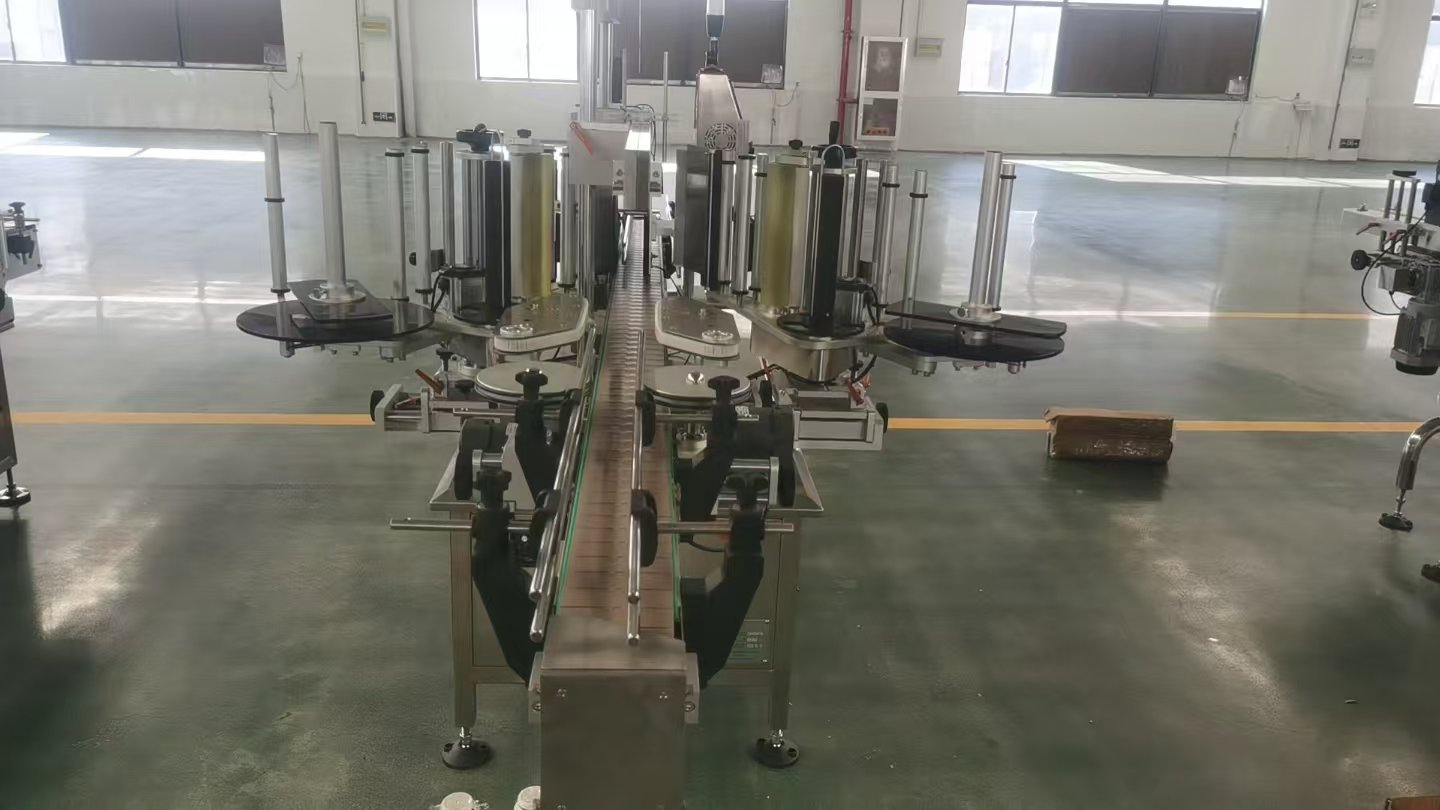

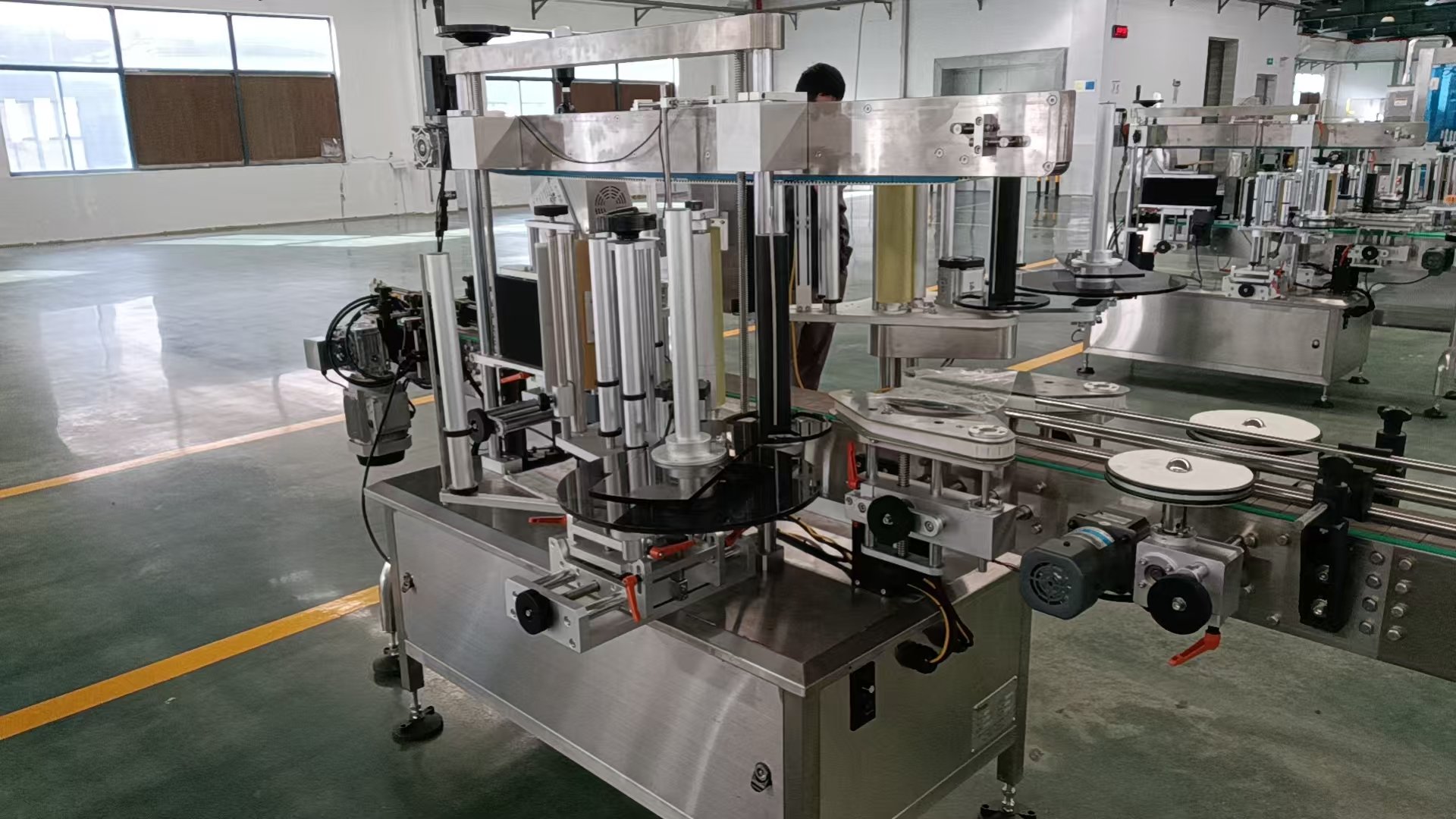

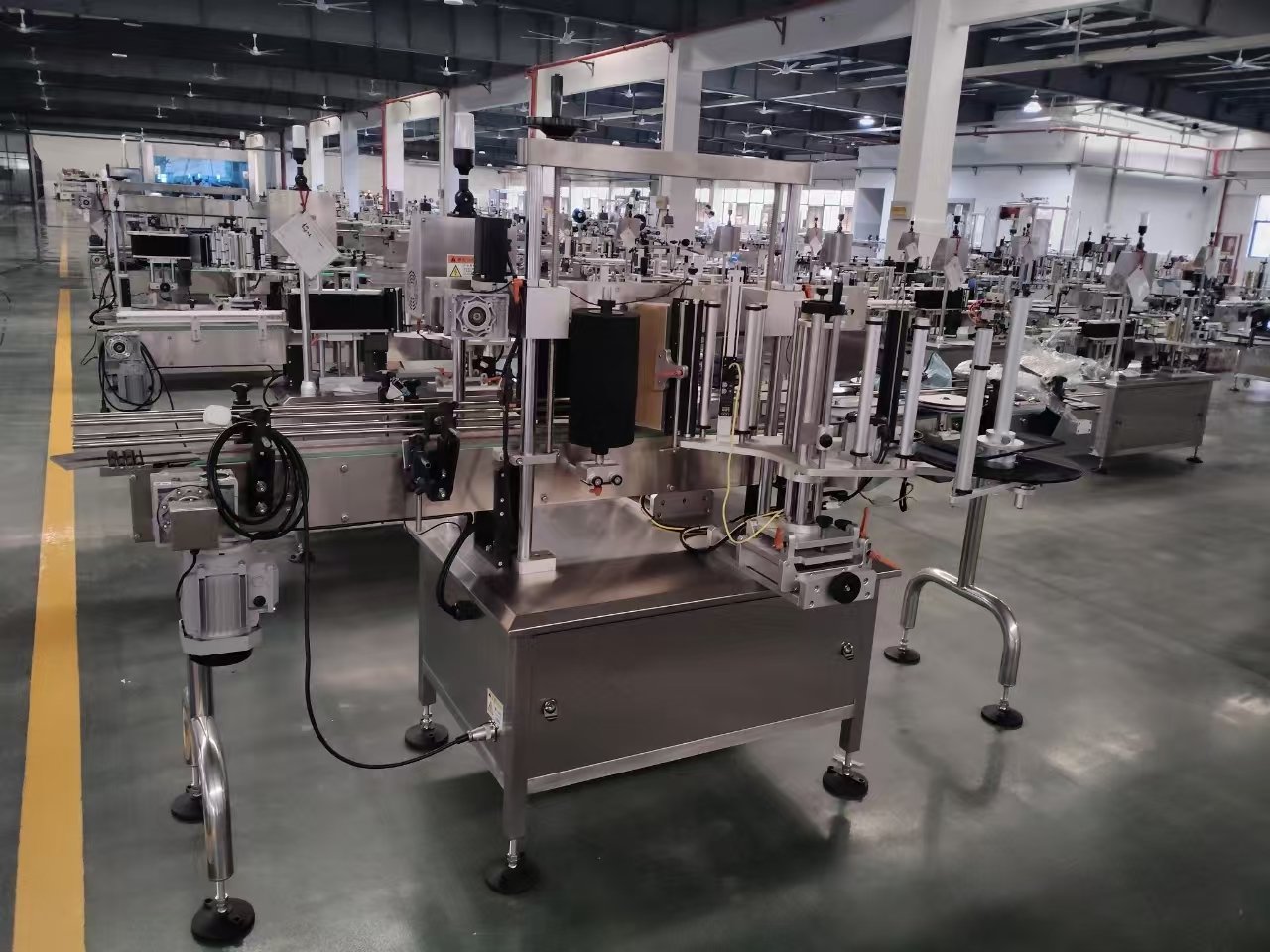

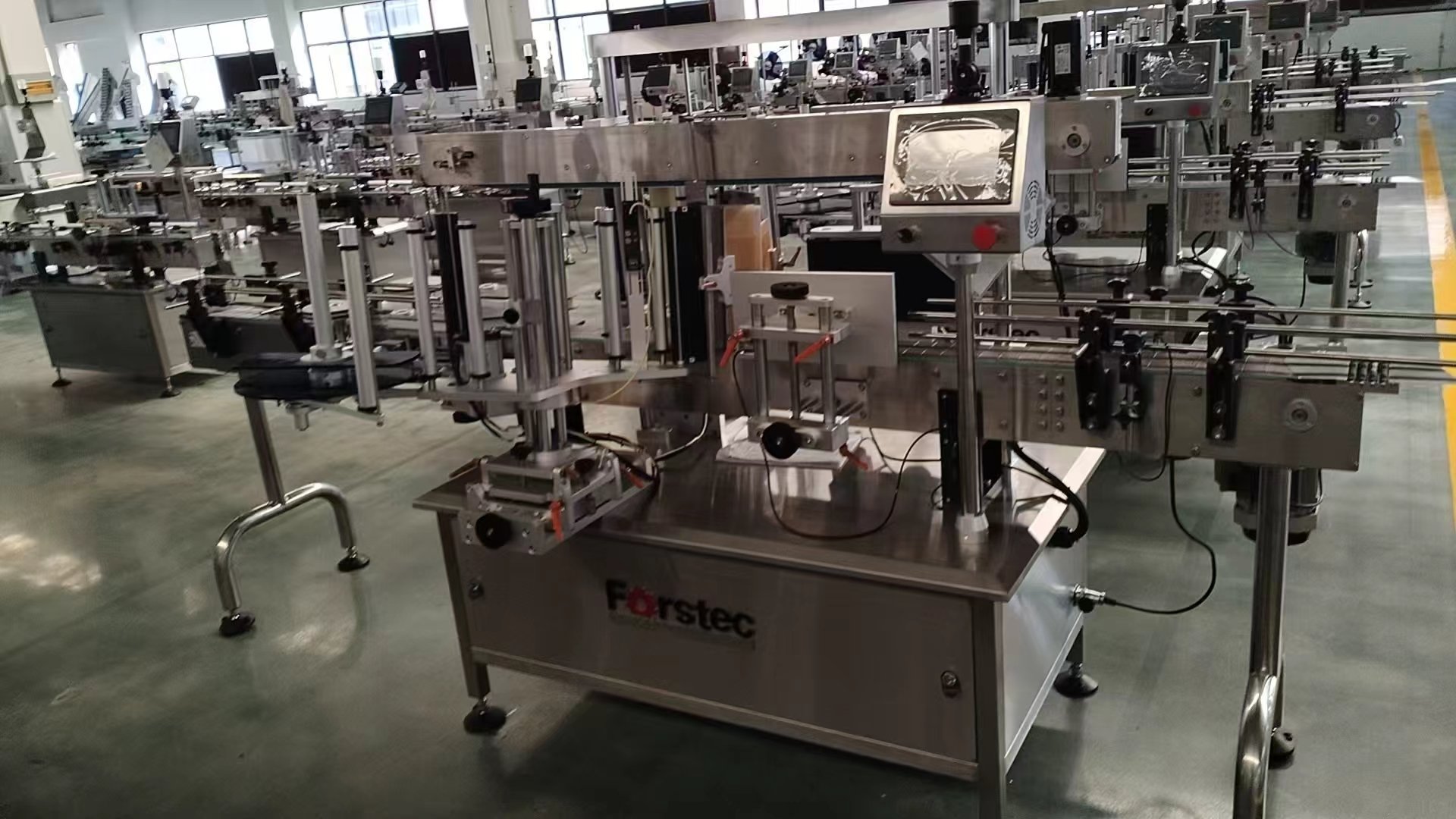

Picture for this Double sides high speed labeling machine for flat bottles/ High speed labeling machine:
