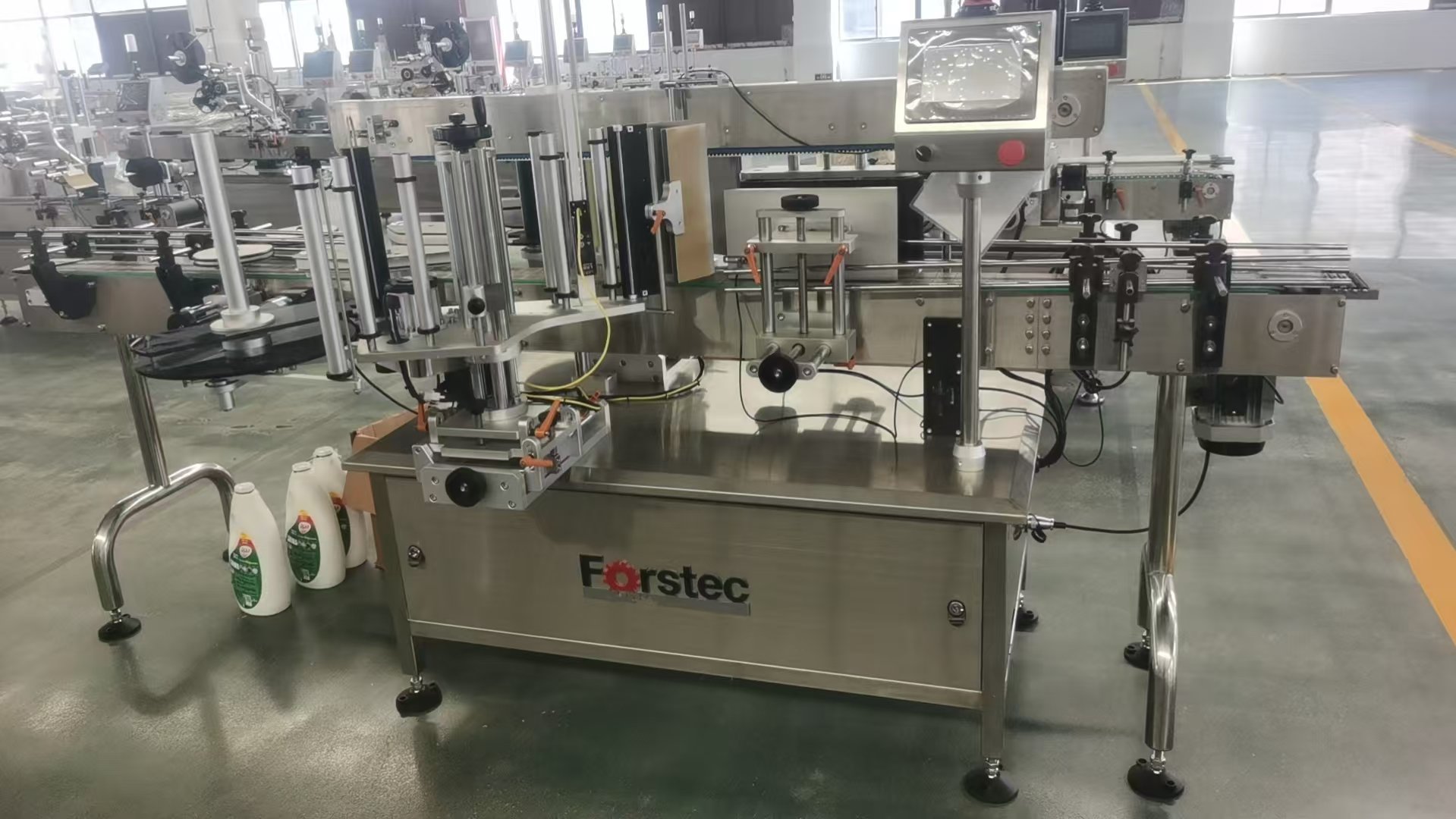

Working Process for Double Sides Self-Adhesive Labeling Machine for round bottles and flat bottles:

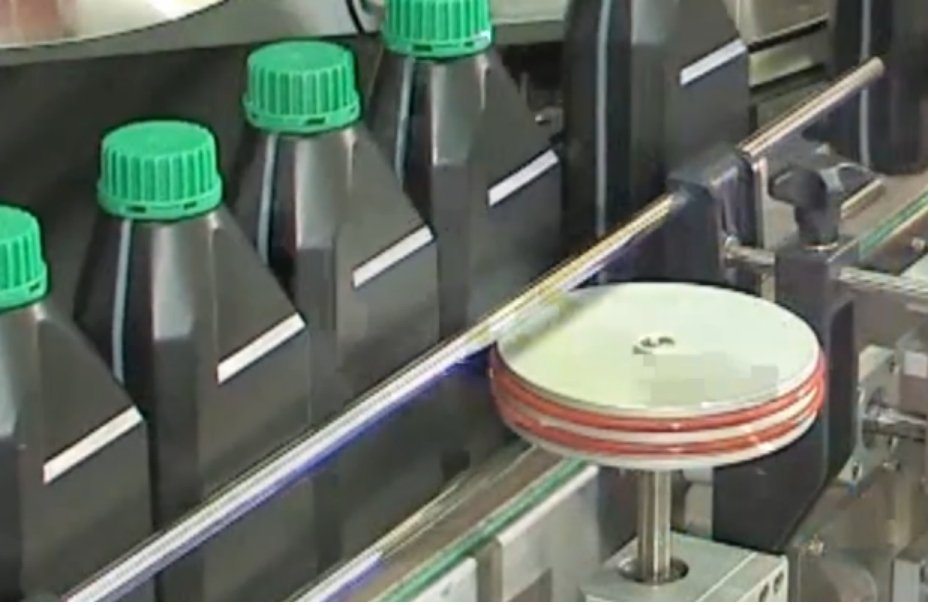

The workflow comprises the following steps: bottle intake, pre-positioning, label feeding, labeling, label support, pressing, and final assembly. Containers are conveyed via a conveyor belt, separated by bottle-dividing screws, and then transported to the container turntable through an inlet star wheel. The turntable is secured by a bottle-pressing mechanism and mold holder while initiating rotation. During rotation, when containers reach the optical detection position, the control system activates the labeling system to separate labels from backing paper and affix them to products.
The control system serves as the brain of equipment, typically comprising components such as PLC controllers, touchscreens, and sensors. Its functions include managing the machine’s operational logic and parameter settings, while real-time monitoring of labels and product positions through sensors ensures precise and stable labeling [3]. The PLC’s synchronization capability maintains alignment between labeling speed and material conveyance speed, thereby guaranteeing high labeling accuracy.
The important points for Double Sides Self-Adhesive Labeling Machine:
Technical parameters for Double Sides Self-Adhesive Labeling Machine:

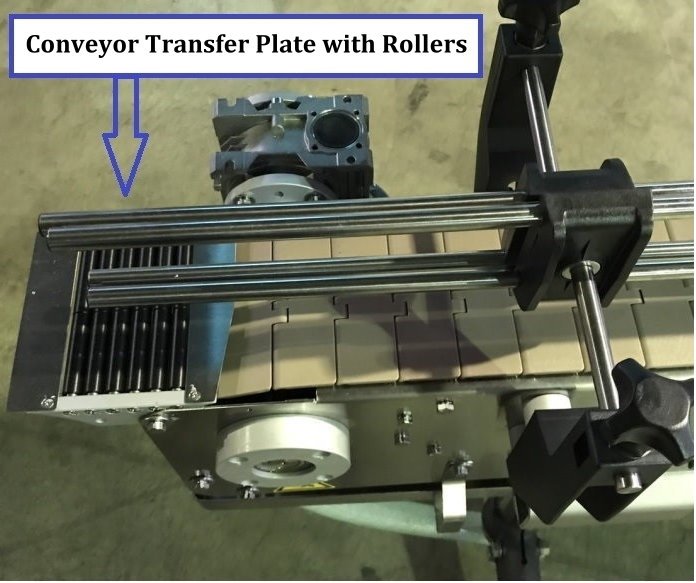

(1) Conveyor Width: should be the standard width that close to 150mm / belt material: POM
– Conveyor Height from Ground: 900mm ±50mm
(2) Bottles Object sensor with reflector should be Germany SICK brand model: WL9G-3N1132
(3) Rotary encoder to ensure labeling accuracy and speed synchronization between the conveyor belt speed and top hold bottle belt speed.
(4) The machine should be suitable with Label Height: 250mm, Label Length: 300mm
(5) Applicable Bottle height: from 50mm – 350mm
(6) Bottle Diameter: 40 – 250mm
(7) The Motor of the Top hold belt should be DELTA Brand 400W
(8) Label Sensor: (LRD-6300) USA LION brand.
(9) Supply: Single-Phase, 220V, 50Hz
What we can provide for customer:
(1) To provide an Instruction Manual.
(2) To provide a maintenance (troubleshooting) manual.
(3) To provide an Installation manual.
(4) To provide AutoCAD Drawing (DWG).
(5) To provide a Pneumatic drawing.
(6) To provide an Electrical drawing.The electrical drawing should match the electrical wiring of the machine.Each wire on the machine should have a name tag identical to the electrical drawing.
(7) To provide a backup PLC program and a backup HMI program.
(8) The PLC program should be without password, and the password should be provided in advance if it exists.
(9) To provide any password required by the HMI in advance if it exists.
(10) The HMI should be in English and should not include any information of the supplier(Forstec Company Information).
