Equipment Structure and Core Components of this Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:

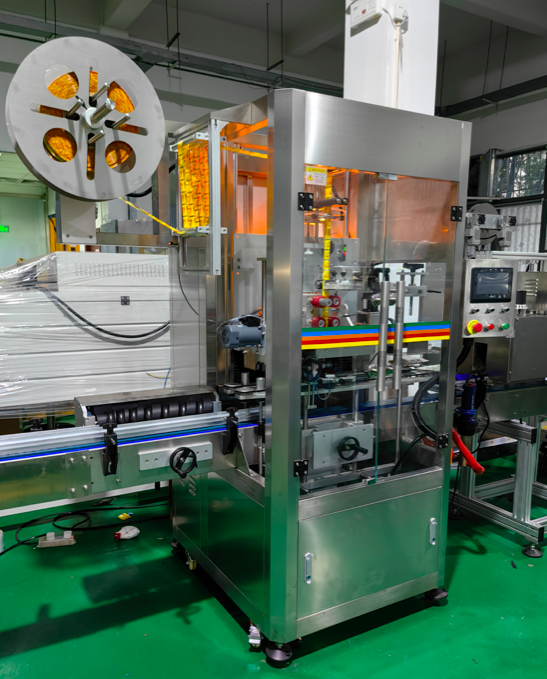

1. main unit of Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:
• Label unwinding rack: A large disc on the left side for loading rolled heat-shrinkable label films (materials including PVC/PET/OPS), ensuring continuous material supply.
• Label feeding/cutting mechanism: An internal core component that precisely cuts continuous label strips to preset lengths and expands them into cylindrical shapes via central guide columns.
• Labeling execution unit: Instantly attaches cylindrical labels to containers such as bottles, cans, or barrels on the conveyor line.
• Electronic control panel: Equipped with a touchscreen and emergency stop/start buttons, used for parameter setting, speed adjustment, and fault monitoring.
• Transparent protective door: Combines safety protection with visual operation for easy observation of operational status.

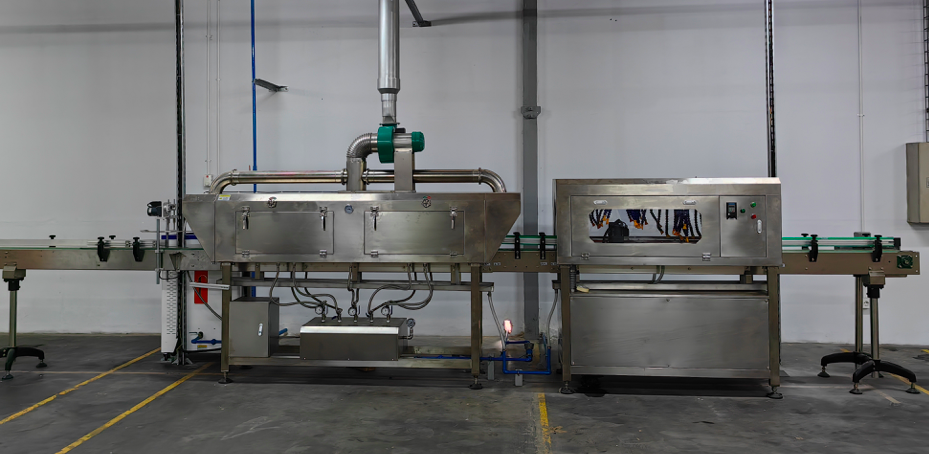

2. Heat shrinkage oven of Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:( main unit)
• Contraction of tunnel cavity: After the label is inserted, the container enters the tunnel and is heated by steam/hot air, causing the label to contract uniformly and adhere tightly to the bottle body.
• Air/steam piping system: The diagram shows white air ducts and green fans, designed to uniformly distribute heat sources and ensure consistent shrinkage effects.
• Temperature control and conveying system: Equipped with an integrated temperature control module that works in conjunction with conveyor chain belts to regulate container dwell time within the furnace, compatible with various bottle types and label materials.
3. Supporting conveyor line of Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:
• Blue/green chain plate conveyor line for continuous transfer of containers between labeling and shrinkage processes, compatible with various containers including round bottles, square bottles, flat bottles, and aluminum cans.
• Some models are equipped with a bottle separation mechanism to ensure containers enter the labeling station at equal intervals, preventing bottle jamming and labeling errors.
Advantages of this Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:
◦ High-speed automation significantly reduces labor costs and enhances production efficiency (high-speed models can achieve tens of thousands of bottles per hour).
◦ High label adhesion and aesthetic appeal enhance the product’s brand image.
◦ Easy label replacement, compatible with products of various specifications, and strong flexible production capacity.
◦ Stainless steel body, compliant with food hygiene standards, durable and easy to clean.
Parameters for this Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:
Assisted machines for this Fully Automatic Heat Shrink Sleeve Machine/ Electrical Heating Shrink Sleeve Machine:
