Basic information High Speed Detergent/Oil Paste Cream/Body Lotion Rotary Filling Machine with Capping Machine:
The equipment consists of three core modules: the housing, piston system, filling head assembly, and transmission device. The housing integrates a PLC programmable controller, touchscreen human-machine interface (HMI), and observation window. The entire unit is typically constructed from food-grade SUS304/316L stainless steel, with material conveying pipelines predominantly using silicone hoses resistant to 120°C temperatures. Internal hoppers and guide channels ensure continuous material feeding . The piston system utilizes a cylinder-driven telescopic rod to create negative pressure suction and pressure discharge within the filling tube. The filling head incorporates an electromagnetic valve assembly, flow sensor, and conical dipping head.
Related pictures for High Speed Detergent/Oil Paste Cream/Body Lotion Rotary Filling Machine with Capping Machine:
Parameters for this High Speed Detergent/Oil Paste Cream/Body Lotion Rotary Filling Machine with Capping Machine:
Advantages for this High Speed Detergent/Oil Paste Cream/Body Lotion Rotary Filling Machine with Capping Machine:
The control system coordinates mechanical action sequences through PLC programming :
Feeding stage: Open the one-way solenoid valve, and the cylinder retracts to create negative pressure for material suction.
Filling stage: The solenoid valve switches channels, and the cylinder pushes the piston to discharge material.
Submersible mechanism: Electric telescopic rod drives the filling head to insert into the container at a specified depth
Flow control: The flow valve adjusts the output in real-time based on preset values [3][6]
Key control components include PLC controllers, photoelectric sensors, and air switches. The control system is typically equipped with a touchscreen human-machine interface (HMI) for parameter configuration, status monitoring, and operational control.

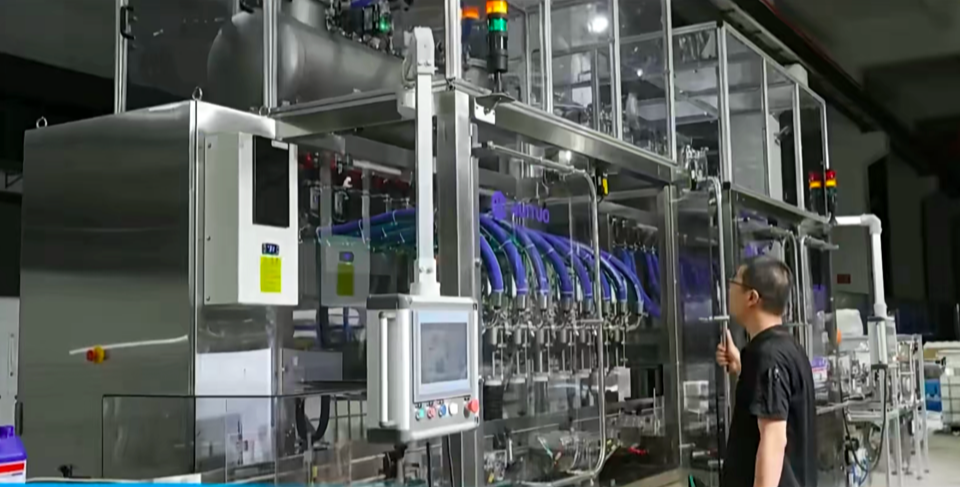

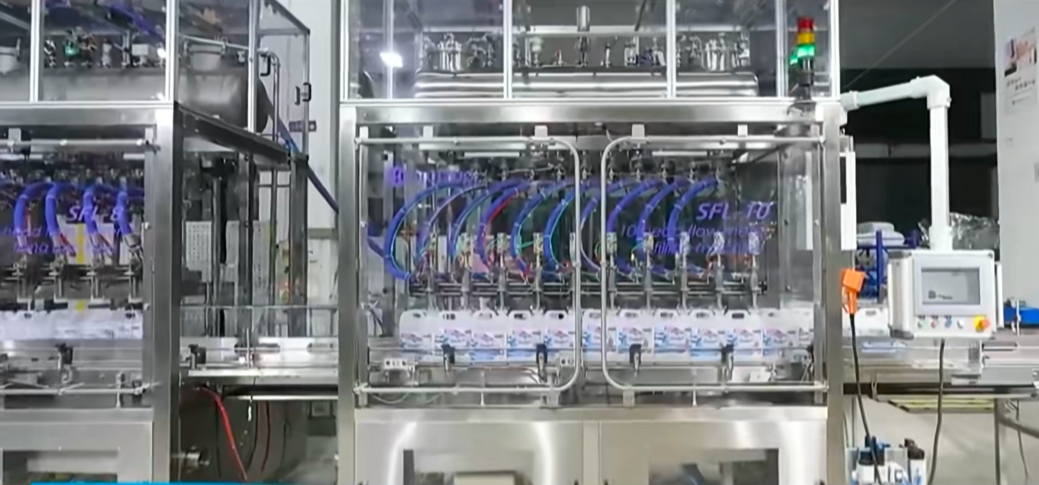

Production line pictures for this High Speed Detergent/Oil Paste Cream/Body Lotion Rotary Filling Machine with Capping Machine:
