Pump Unscrambler for this High Speed Rotary Pump Screw Cap Capping Machine with Cap Unscrambler:
Main features for this High Speed Rotary Pump Screw Cap Capping Machine with Cap Unscrambler:
The entire device is manufactured from stainless steel 304 material and complies with GMP requirements.
The high-speed automatic capping machine integrates directional sorting, conveying, and high-speed capping functions for cap bodies. It automatically screens and corrects cap orientation through vibration trays and visual recognition technology, while incorporating cap absence detection and seal integrity verification modules to eliminate defective products in real time. For vacuum capping machines, an air-bubble ring vacuum chamber structure ensures reliable vacuum levels and capping precision.
The servo-driven rotating cap head achieves torque control accuracy of ±1%, enabling non-destructive tightening and anti-counterfeiting locking, while featuring intelligent mechanical torque control with convenient operational adjustment.The compact and rational structure facilitates seamless integration with other equipment for line production.
The device supports modular optional configurations, including a bottle cap guiding mechanism suitable for caps with pump heads, an optional digital position display function for parameter adjustment during product replacement, and an optional automatic detection and rejection mechanism for defective screw-on caps.
Parameters for this High Speed Rotary Pump Screw Cap Capping Machine with Cap Unscrambler:

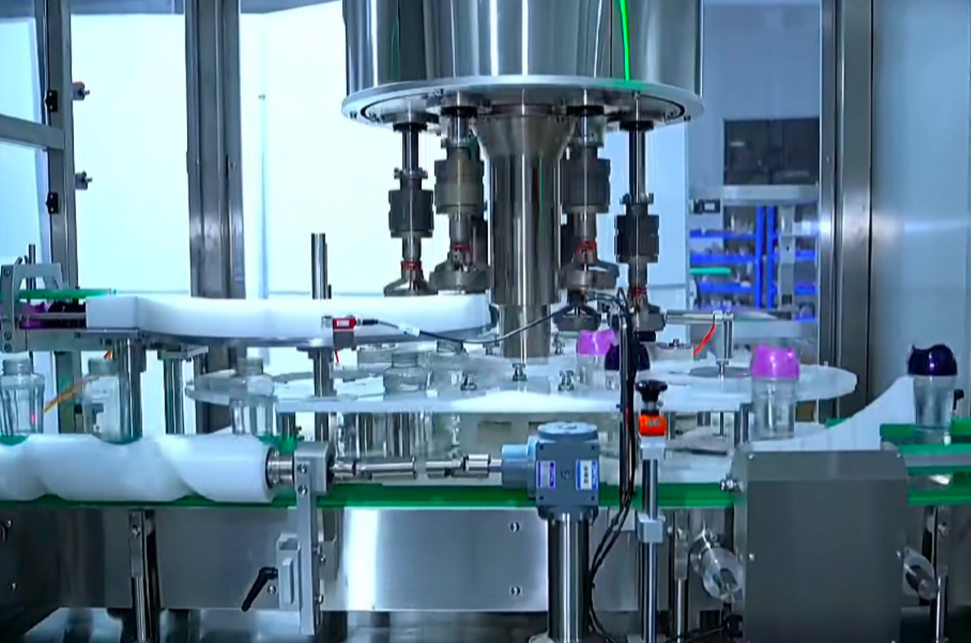

Machine details for this High Speed Rotary Pump Screw Cap Capping Machine with Cap Unscrambler:
Working principle for this High Speed Rotary Pump Screw Cap Capping Machine with Cap Unscrambler:
This High Speed Rotary Pump Screw Cap Capping Machine is a capping machine suitable for various bottle shapes in industries such as food, pharmaceuticals, daily chemicals, pesticides, and cosmetics.
The core operational principles of the equipment involve four key processes: cap alignment, bottle feeding, cap insertion, and cap rotation. The cap alignment system positions the caps at a 30-degree angle before being sorted by the cap sorting mechanism, which then feeds them upward onto the cap placement track. After separation by the bottle sorting unit, bottles enter the cap insertion zone where the bottle clamping device automatically secures the caps. The cap pressing mechanism first compresses the caps into a pre-tightened state before the bottles pass through three pairs of high-speed rotating cap rollers. These rollers apply pressure to firmly secure the caps onto the bottle bodies, completing the cap pressing operation.
