Characteristics for Linear Capping Servo Capping Machine with Cap Elevator:
The core components of an automated capping machine include: a capping mechanism (e.g., inclined disk magnetic capping machine) for automatic bottle cap sorting and feeding; a capping drive system (comprising constant torque capping head and servo motor) that provides driving force and torque control; a bottle clamping belt and cap stabilizer to secure the bottle body and cap during capping; and a pneumatic ring vacuum chamber (for vacuum capping models) to ensure reliable vacuum sealing conditions.
Technical points for Linear Capping Servo Capping Machine with Cap Elevator:
Linear Capping Servo Capping Machine with Cap Elevator features a linear design that facilitates streamlined assembly line configurations with aesthetic appeal. Its main unit employs imported variable frequency drives for stepless speed regulation, incorporating a high-intensity electromagnetic left-handed cap twisting torque device. Selected models utilize servo stepper control systems to precisely regulate rotational torque and angles, equipped with integrated smart sensors capable of identifying sample tubes of varying capacities. Advanced servo tracking technologies (including positioning optical eyes and lateral/longitudinal servo mechanisms) enable real-time capping during continuous bottle feeding, significantly enhancing operational efficiency. The system supports PROFINET industrial Ethernet and isochronous synchronous communication (IRT) protocols to facilitate seamless integration, minimize wiring complexity, and improve control accuracy and scalability. Featuring touchscreen interfaces with one-touch operation and formula storage capabilities, it delivers intuitive user experience. Its compact structural design allows seamless integration with peripheral equipment such as liquid processing workstations and robotic arms for automated production lines.

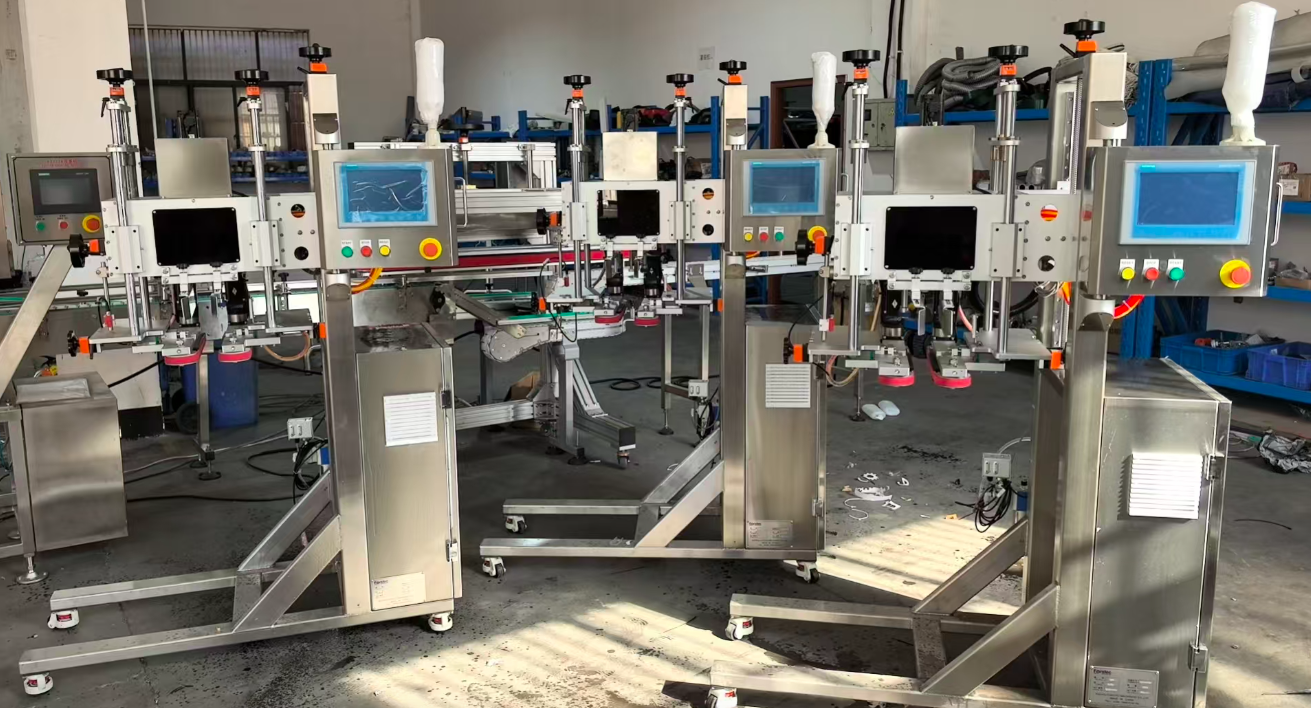

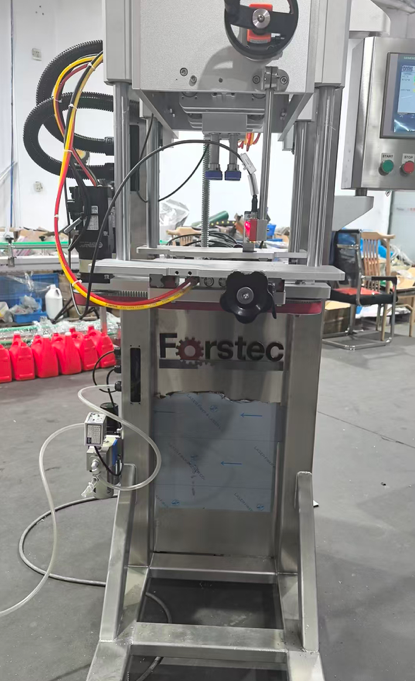

Manufacturing pictures for Linear Capping Servo Capping Machine with Cap Elevator:
Technical parameters for Linear Capping Servo Capping Machine with Cap Elevator:
● Bottle cap type: Various bottle caps
● Outer diameter of the bottle cap: 22–50 mm
● Lid-locking speed: 50-70 bottles/min (speed depends on manual pre-spinning degree)
● Pressure requirement: 5Kg
● Power supply requirements: Single-phase 220VAC, 60Hz
● Machine dimensions: (Length) 550mm (Width) 1228mm (Height) 1800mm
● Single-head servo lock cover, featuring high speed and precision
● Digital output torque measurement enables precise control of torque applied to each bottle cap closure, thereby reducing cap breakage rate
● PLC control program and human-machine interface for convenient operation
● Intermittent belt drive positioning with a “no bottle, no lock cap” design concept, featuring intelligent engineering
● Built-in memory module for storing lock cover parameters
● The cap locking torque is adjustable to accommodate varying tightness requirements of different bottle caps
● Use precision wire-cutting lock cap heads to ensure accurate lock cap positioning
● The lock cap assembly can be easily replaced according to different containers and bottle caps.
● Emergency stop button and three-color warning light
● The lock cap head is made of high-elasticity PU material, providing optimal protection for the bottle cap.
Lock tab machine specifications:
● Bottle cap type: Various bottle caps
