Main features for this Linear Non-Stop Hair Conditioner Detergent and Daily Chemical Shampoo Capping Packing and Filling Capping Machine:
1. Servo driven tracking and positioning filing, the whole machine is driven by one screw, filling and bottle moving are carried out synchronously, with fast speed and high precision.
2. Flow meter filling has multi-level material level detection, which can compensate the fling volume according to the liquid level height.
3. The material box has a pressurization mode. When the remaining material in the material box is insufficient, constant pressure filing can be performed even at different liquid levels.
4. Negative ion air blowing bottle, fine dust falls off without static electricity, vacuum extraction, remove dust.
5. The weighted stability system has been upgraded, and the operation is vibration-free, safe and reliable.
6. Equipped with complete machine lubrication system with automatic adjustment of lubrication time
7. It has a wide range of applications. There is no need to change the mold when changing specifications. The parts that need to be adjusted are marked with scales, which is convenient and quick.
8. Use world-renowned electrical appliances to ensure the durability of the equipment.
Parameters for this Linear Non-Stop Hair Conditioner Detergent and Daily Chemical Shampoo Capping Packing and Filling Capping Machine:
Machine technical points for this Linear Non-Stop Hair Conditioner Detergent and Daily Chemical Shampoo Capping Packing and Filling Capping Machine:

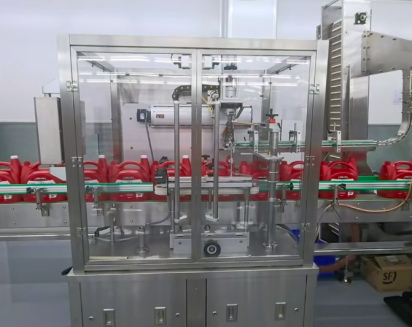

The FT series tracking piston filling machine integrates multiple components including chain conveyors, bottle-clamping automatic alignment mechanisms, filling units, servo-controlled piston systems, electric lifting adjustment mechanisms, waterproof electrical cabinets, and touchscreen human-machine interfaces. Compared to traditional filling machines, this system employs tracking filling technology that precisely controls nozzle movement to synchronize with bottle positioning during filling. This innovation significantly reduces production errors while enhancing filling accuracy. Additionally, each filling nozzle can be independently controlled, enabling more flexible and efficient operation.
main features ：
1. Programmable PLC controller and touchscreen operation ensure reliable system performance and user-friendly operation.
2.Achieve fully automated processes including automatic barrel feeding, automatic positioning, automatic filling, automatic lid closing and screwing, and automatic labeling.
3.The filling head is treated with leak-proofing to eliminate dripping and splashing issues, and features quick-release connectors for easy disassembly, cleaning, and maintenance.
4.The filling volume can be freely adjusted, and the nozzle height is adjustable, making it suitable for packaging drums of various specifications.
5.The filling speed and frequency can be set on the touchscreen according to production requirements, including a rapid coarse filling phase and a low-speed fine filling phase, to ensure stable filling accuracy.
6.Equipped with weighing platforms to ensure no filling without buckets, and adopts differential pressure zero-time difference bucket collision protection. Signal indicator lights display real-time status, with automatic alarms triggered when deviations exceed limits.
Applications for this Linear Non-Stop Hair Conditioner Detergent and Daily Chemical Shampoo Capping Packing and Filling Capping Machine:
Related for this Linear Non-Stop Hair Conditioner Detergent and Daily Chemical Shampoo Capping Packing and Filling Capping Machine:
