The basic information for Linear Servo Four-Wheel Capper Machine for Bottles/ High Speed Screw Cap Screwing Capping Machine:

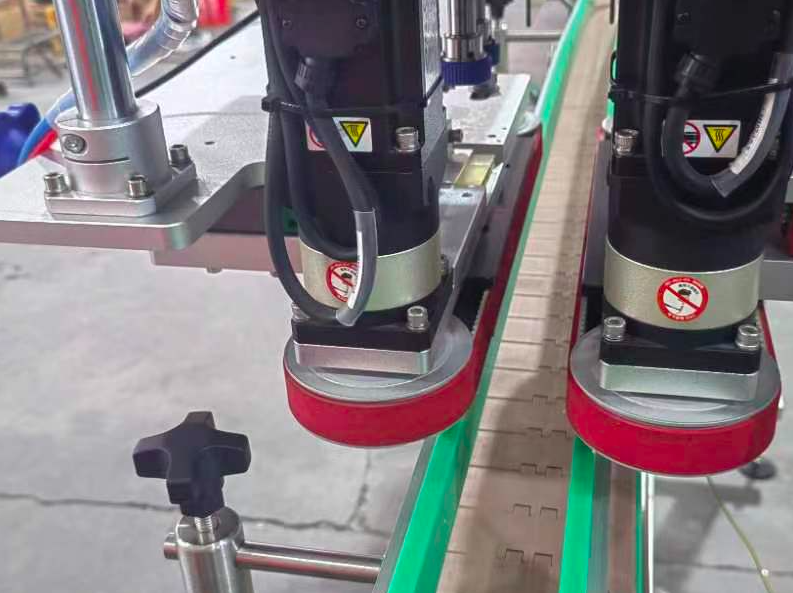

Our compact four-wheel bottle capping machine is a space-efficient and high-performance capping solution. Bottles equipped with premium caps or pump heads enter the machine through one side, where a bottle clamping belt secures them in place and advances them forward. Upon reaching the central positioning zone, the clamping belt stops while two sets of capping rollers on both conveyor belt sides converge inward. These rollers engage with the caps/pump heads, applying friction to secure them tightly before being swiftly ejected from the capping zone by the clamping belt, enabling efficient production.
Advantages and features for this Linear Servo Four-Wheel Capper Machine for Bottles/ High Speed Screw Cap Screwing Capping Machine:
• Belt adjustment is servo-controlled, significantly reducing model switching adjustment time and lowering operational complexity.
• Equipped with safety features including emergency stop, alarm lights, and servo limit protection.
• Enables non-invasive cap rotation with controllable torque.
• Equipped with an adjustable mechanism that allows free adjustment according to product shape, demonstrating strong versatility.
• For products with pump heads, consistency in pump head orientation can be achieved.
This Linear Servo Four-Wheel Capper Machine for Bottles/ High Speed Screw Cap Screwing Capping Machine is used for the following bottles:
Extra functions for this Linear Servo Four-Wheel Capper Machine for Bottles/ High Speed Screw Cap Screwing Capping Machine:
Both the bottle feeding mechanism and the cap-rotating motor are controlled by high-precision servo systems. During product switching, manual adjustments are significantly reduced, with time-consuming and labor-intensive manual operations replaced by servo-driven mechanisms. When switching production lines, simply selecting the corresponding product menu from the screen automatically resets the equipment to its initial state for new product manufacturing, achieving intelligent and efficient “one-click switching.”
Parameters for this Linear Servo Four-Wheel Capper Machine for Bottles/ High Speed Screw Cap Screwing Capping Machine:
