The basic information for this Liquid food filling and capping line/ oil filling capping labeling line:
It is designed for aqueous solutions and cream-based formulations, demonstrating exceptional performance with high-viscosity materials. Equipped with PLC programmable control and a touchscreen human-machine interface system, it enables automated bottle feeding, filling, and dispensing processes. The system utilizes servo motor drive and dual ball screw transmission mechanisms, featuring 8 customizable filling heads compatible with bottle sizes ranging from 500ml to 5000ml. The production rate ranges from 1000 to 7200 bottles per hour (calculated based on 1000ml water volume).
Parameters for this Liquid food filling and capping line/ oil filling capping labeling line:
Details information for this Liquid food filling and capping line/ oil filling capping labeling line Machine:
The control system coordinates mechanical action sequences through PLC programming :
Feeding stage: Open the one-way solenoid valve, and the cylinder retracts to create negative pressure for material suction.
Filling stage: The solenoid valve switches channels, and the cylinder pushes the piston to discharge material.
Submersible mechanism: Electric telescopic rod drives the filling head to insert into the container at a specified depth
Flow control: The flow valve adjusts the output in real-time based on preset values [3][6]
Key control components include PLC controllers, photoelectric sensors, and air switches. The control system is typically equipped with a touchscreen human-machine interface (HMI) for parameter configuration, status monitoring, and operational control.

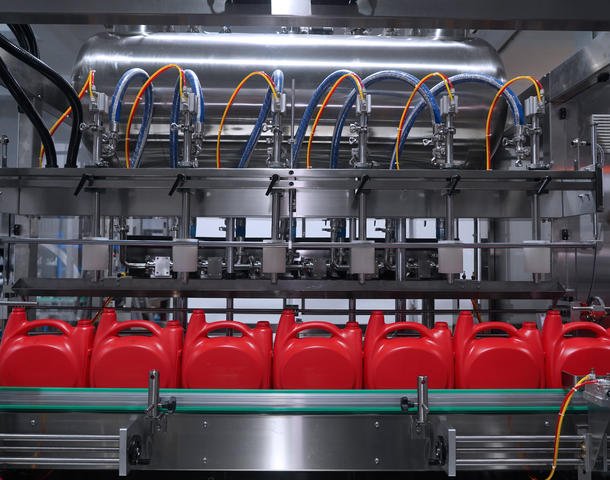

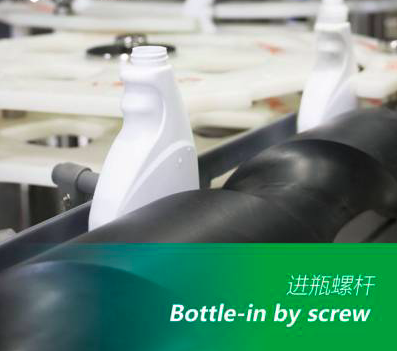

Liquid food filling and capping line/ oil filling capping labeling line Machine details pictures:
