Basic Principle for this Multifunctional Linear Capping Machine for Screw Cap/Trigger Spray Cap/Pump Cap:
This Multifunctional Linear Capping Machine for Screw Cap/Trigger Spray Cap/Pump Cap device is a capping machine suitable for various bottle shapes in industries such as food, pharmaceuticals, daily chemicals, pesticides, and cosmetics.
The core operational principles of the equipment involve four key processes: cap alignment, bottle feeding, cap insertion, and cap rotation. The cap alignment system positions the caps at a 30-degree angle before being organized by the cap management mechanism, which then feeds them upward onto the cap placement track. After separation by the bottle sorting unit, bottles enter the cap insertion zone where the bottle clamping device automatically secures the caps. The cap pressing mechanism first compresses the caps into a pre-tightened state before the bottles pass through three pairs of high-speed rotating cap rollers. These rollers apply pressure to firmly secure the caps onto the bottle bodies, completing the cap pressing operation.

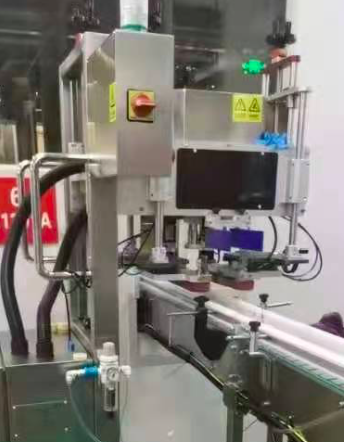

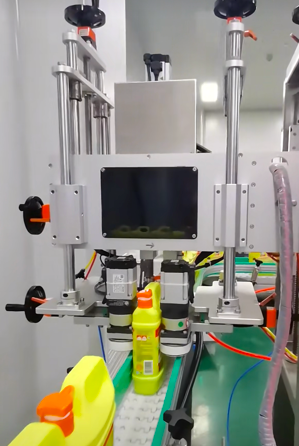

Machine detailed pictures for this Multifunctional Linear Capping Machine for Screw Cap/Trigger Spray Cap/Pump Cap:
Parameters for this Multifunctional Linear Capping Machine for Screw Cap/Trigger Spray Cap/Pump Cap:
Capping protection: The protective cover provides dual sealing for the lifting tube through a sealing gasket and sealing airbag, compatible with bottle mouths of different diameters to prevent filling splashing. After filling completion, the protective cover and sealing airbag form a closed protective barrier to prevent residual materials from contacting air, dust, scaling, or contaminating materials .

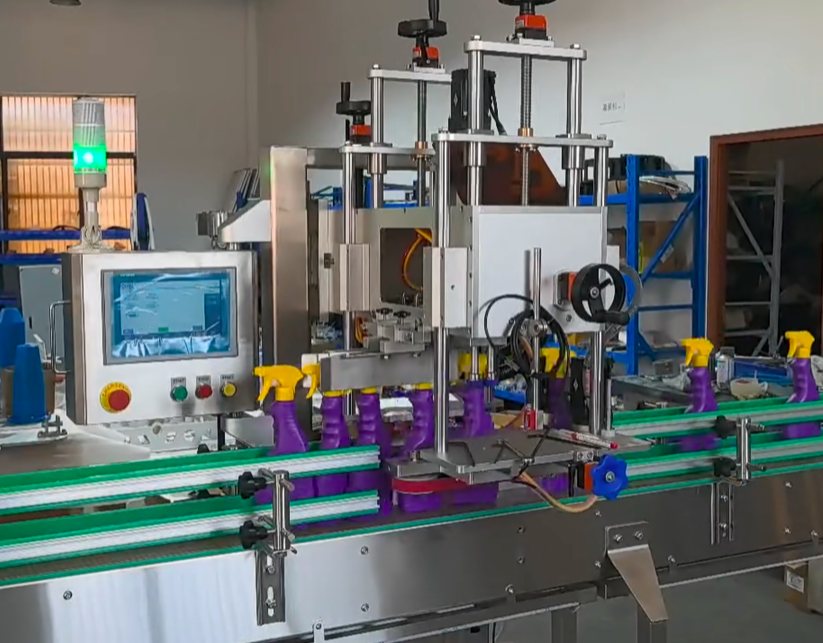

Production line pictures for this Multifunctional Linear Capping Machine for Screw Cap/Trigger Spray Cap/Pump Cap:
