Special information for this Permanent Magnet Clutch Rotary Capping Machine/Rotary Trigger Capping Machine:
l Working principle: Continuous rotary operation with conformal screws for rapid and flexible bottle separation. The star wheel template guides bottles into the intermediate capping station for cap installation.
l Cover rotation torque: Permanent magnet clutch;
l Mechanical cam system allows rapid production switching for different bottle-shaped cams with varying specifications;

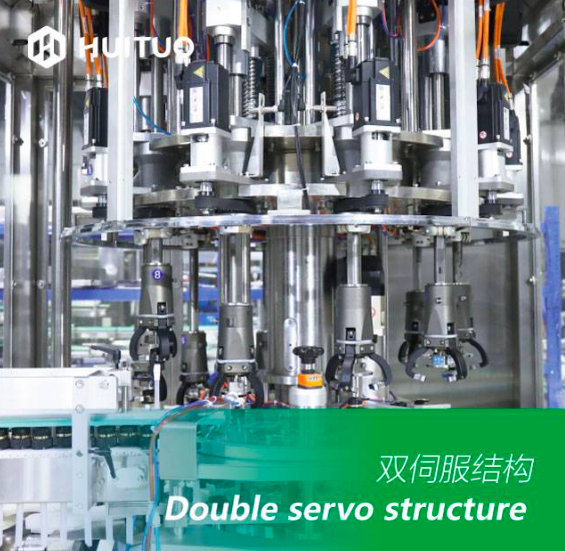

The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
l Modular claw head design with quick-change structure (pin-type);
l Suitable for bottle types: round bottles, square bottles, square bucket bottles with handles, regular and irregular bottle shapes;
Applicable cover types: spray gun covers, pump covers, round covers, etc.;
l Modular template design enables rapid tool-free production switching.
Details for this Permanent Magnet Clutch Rotary Capping Machine/Rotary Trigger Capping Machine:
Advantages for this Permanent Magnet Clutch Rotary Capping Machine/Rotary Trigger Capping Machine:
The machine is suitable for screw-capping various bottle sizes in pharmaceuticals, daily chemicals, food, and cosmetics industries.

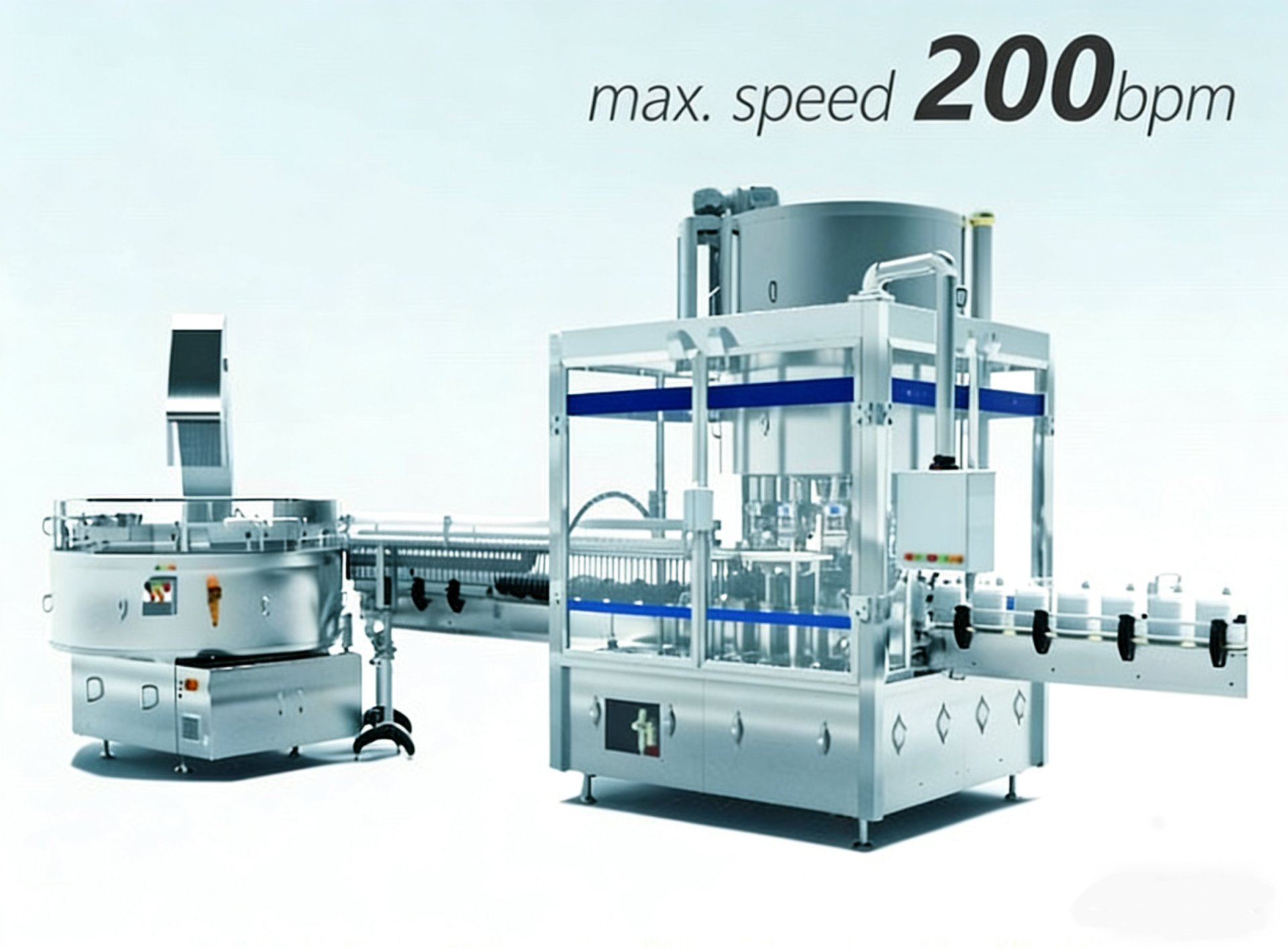

1. Production capacity ranges from 50 to 200 bottles per minute, with specific configurations customized according to individual client requirements;
2. The production changeover adopts a quick-change structure, with approximately 20 minutes required for product switching between different items;
3. Torque control for rotating cover torsion permanent magnet clutch, ensuring precise torque;
4. The mechanical cam completes the lifting and lowering of the gripper head;
5. The claw head adopts a quick-release structure, achieving a screw-on efficiency of 98%;
6. Reserve MES communication interface.

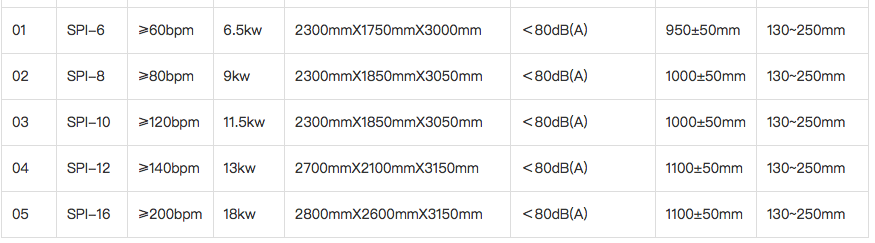

Parameters for this Permanent Magnet Clutch Rotary Capping Machine/Rotary Trigger Capping Machine:
