Basic information for Petrochemicals Packaging Filling Machine for Engine Oil:
The equipment utilizes a 316L stainless steel plunger metering pump with ±0.5% filling accuracy and supports quick-connect disassembly for cleaning. Equipped with a PLC control system and variable frequency speed regulation technology, it allows customization of 4-12 filling heads while enabling overall or individual dose adjustment. Its drip-proof needle design accommodates various bottle types and can be integrated with bottle sorters and capping machines to form fully automated production lines. Core components are made of ceramic materials selected based on liquid properties, specifically engineered for low-viscosity liquids. Selected models feature dual active roller conveyor belts and detachable baffle structures to prevent oil contamination of transport components, facilitating easy cleaning and maintenance.

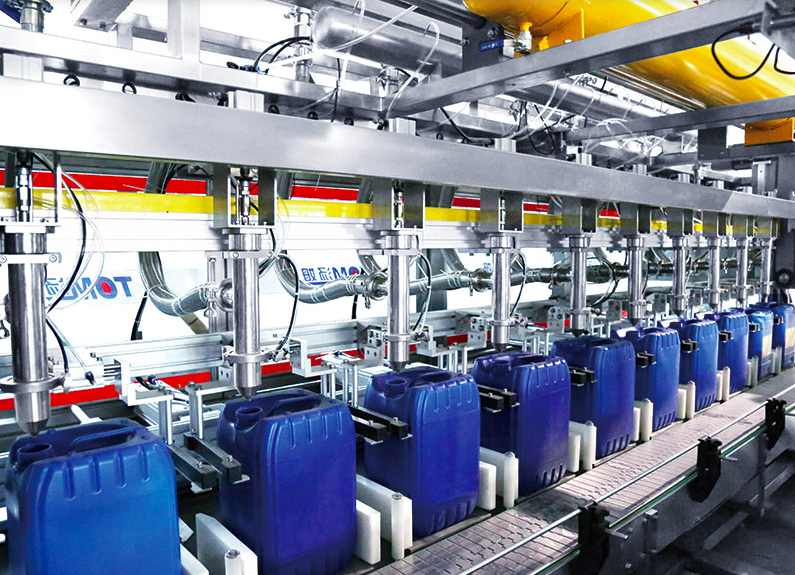

The picture of Petrochemicals Packaging Filling Machine for Engine Oil:
The characteristics of Petrochemicals Packaging Filling Machine for Engine Oil:
The filling process was performed using a plunger metering pump, which features a quick-connect detachable mechanism for easy cleaning and disinfection.
Suitable for filling of low-viscosity liquids and aqueous solutions.
Depending on the specific model and configuration, the filling accuracy can reach ≤0.1% FS (Full Scale), with some models employing high-precision weighing sensors for measurement.
The material of piston rings in plunger metering pumps varies depending on the industry and liquid composition, with ceramic materials being used in special applications.
An imported PLC control system and frequency conversion speed regulation are adopted.
It is typically equipped with a touchscreen human-machine interface, supporting full Chinese-language guidance for operation, and enabling parameter setting and adjustment.
The filling dose of all metering pumps can be adjusted in one go, or individually for each metering pump.
The filling needle is designed with a drip prevention device and employs an immersion-type filling method.
Some high-end models adopt a dual anti-leakage design combining mechanical sealing with vacuum suction.
The entire machine is compatible with bottles of various specifications, and the adjustment process can be completed within a relatively short time.
By adjusting parameters such as filling volume, filling speed, and nozzle height, the system can accommodate containers of varying specifications ranging from 1 liter to 200 liters or even 1000 liters (e.g., bottles, drums, cans), and is capable of processing a wide range of liquid materials with low to high viscosity.
The entire machine is designed in accordance with GMP requirements.
The equipment has a wide range of filling efficiency, with speeds varying from 30 barrels per hour (large capacity) to 8,000 bottles per hour (small packaging) depending on capacity and model. The main body is primarily constructed using corrosion-resistant materials such as stainless steel.
Technical parameters for Petrochemicals Packaging Filling Machine for Engine Oil:
1. Dimension (L * W * H): 3240mm×1900mm×2300mm
2. Container mouth diameter: ≥Φ38mm
3. Container size: length 160mm-340mm; width:140mm-260mm;
height: 250mm-500mm
4. Power supply: 220V; 50Hz
5. Main power: 6.5KW
6. Filling range: 10-30KG
7. Filling accuracy: ±1%
8. Air source: 0.6Mpa clean and stable compressed air
9. No. of filling head: 8
10. Production capacity: 400 barrels/hour (for 18kg water)
