Characteristic for Piston-type filling machine/Soy sauce filling machine/Chili sauce filling machine:
The control system coordinates mechanical action sequences through PLC programming :
Feeding stage: Open the one-way solenoid valve, and the cylinder retracts to create negative pressure for material suction.
Filling stage: The solenoid valve switches channels, and the cylinder pushes the piston to discharge material.
Submersible mechanism: Electric telescopic rod drives the filling head to insert into the container at a specified depth
Flow control: The flow valve adjusts the output in real-time based on preset values.
Key control components include PLC controllers, photoelectric sensors, and air switches. The control system is typically equipped with a touchscreen human-machine interface (HMI) for parameter configuration, status monitoring, and operational control.
Parameters for this Piston-type filling machine/Soy sauce filling machine/Chili sauce filling machine:
Working process of Piston-type filling machine/Soy sauce filling machine/Chili sauce filling machine:
The filling process consists of fast filling and slow filling, at the beginning of filling, the fast filling valve and slow filling valve both open to achieve fast filling, when the filling volume reach to the set value, the fast filling valve will be closed to achieve slow filling, to guarantee the filling accuracy, when the filling value reach to the target value, the slow filling valve will close automatically.the filling hopper is designed by pressure type, to increase the filling speed; adopts screw type feeding bottle, greatly shortened the time of bottle push in and out. 4.Adopt three-row filling mode, with front row as bottle inlet, middle row as filling by weighing ,and rear row as bottle outlet, greatly shortening the time of filling process.

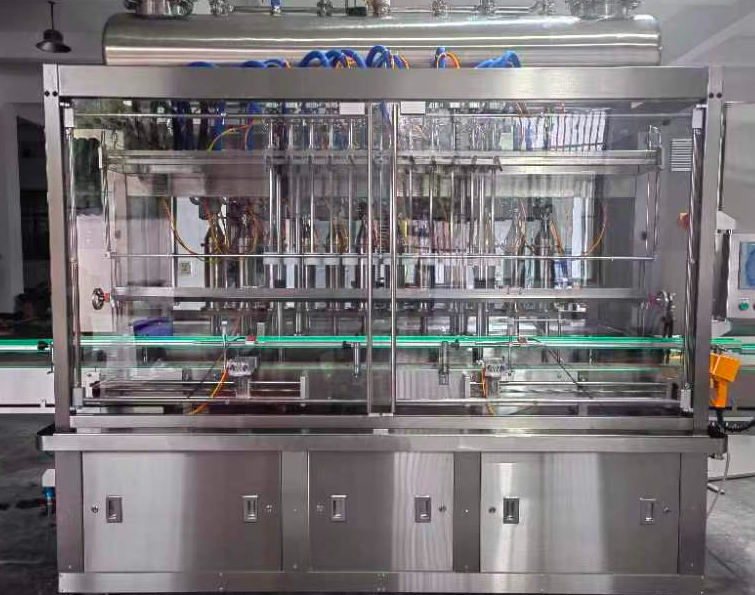

Detailed pictures for this Piston-type filling machine/Soy sauce filling machine/Chili sauce filling machine:
