Basic information for this Pump/Trigger Cap unscrambler and Feeding and capping machine/Pump/Trigger Cap Feeder and feeding machine:
PLC enables fully automated operation, completing the entire process of lid handling, lid feeding, lid grasping, and lid pressing in a single step;
3. Automatic positioning of bottle cap orientation; adjustable cap pressing force;
4. Flexible operation without damaging the cap or the bottle;
5. Features rapid production switching capability with ***multi-product support;
6. Easy integration with filling machines and labeling machines;
7. Modular structure, online operation, and easy maintenance;
8. Suitable for containers made of materials such as PET/PP/PE/HDPE;
9. Production capacity ranges from 4,000 to 8,000 bottles per hour, with higher speeds available upon customer customization;
10. Applied to daily chemical products such as laundry detergent.

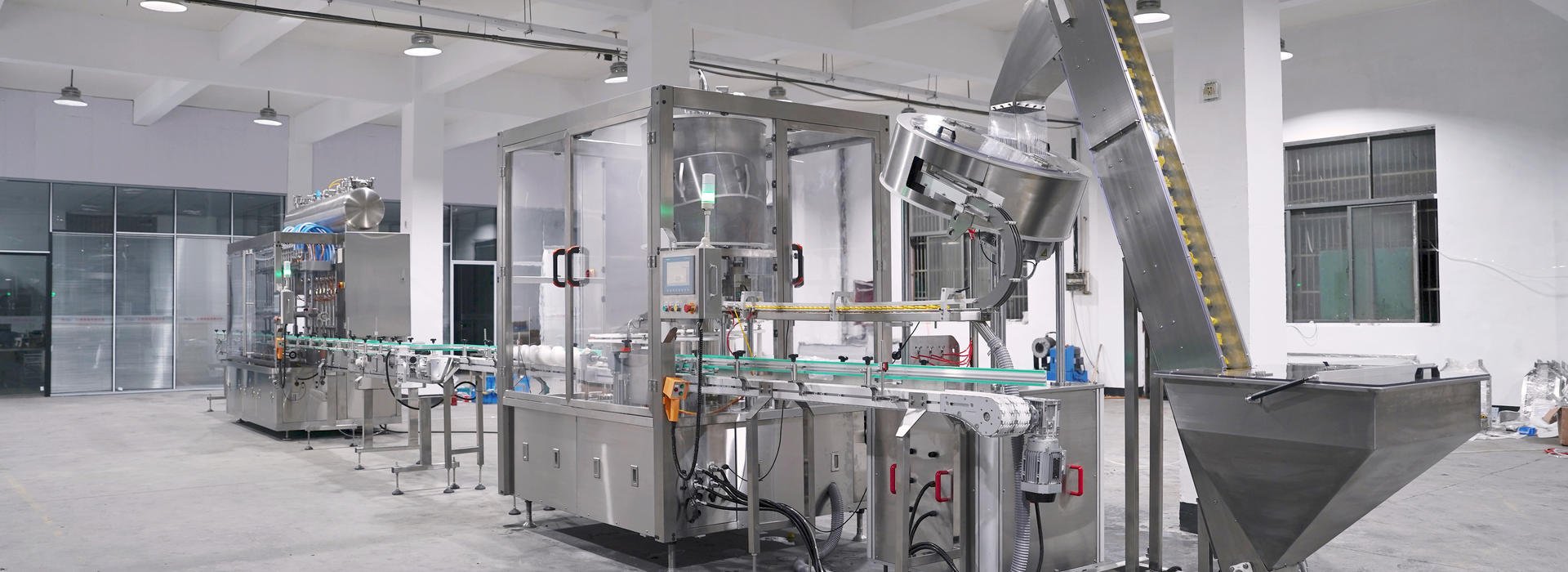

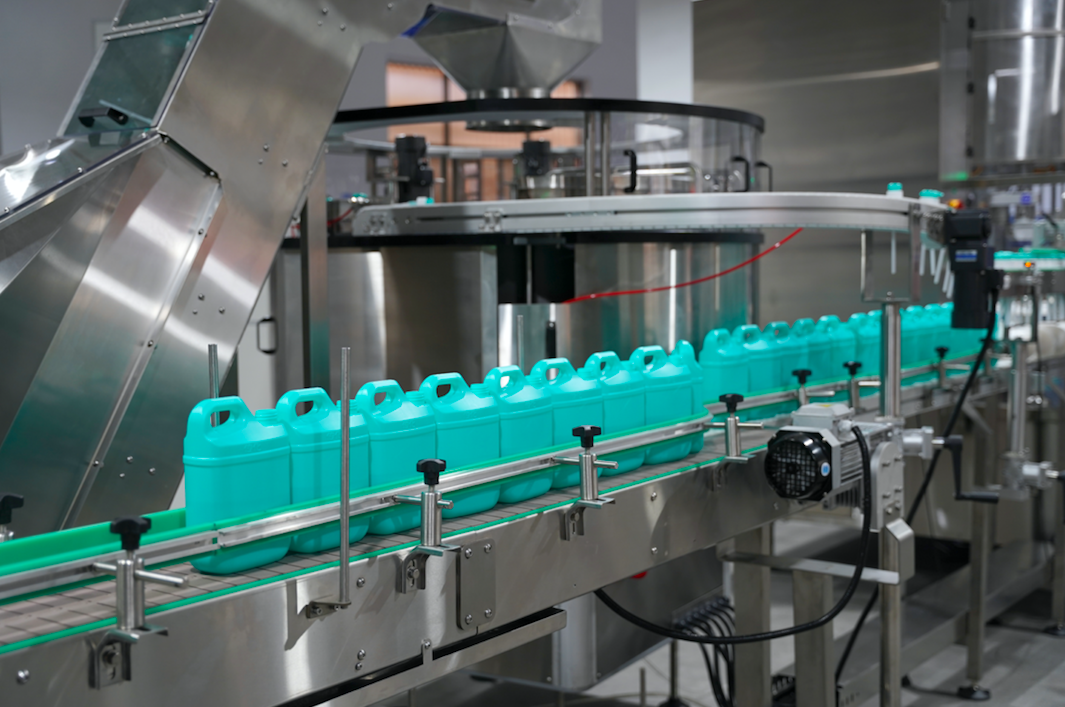

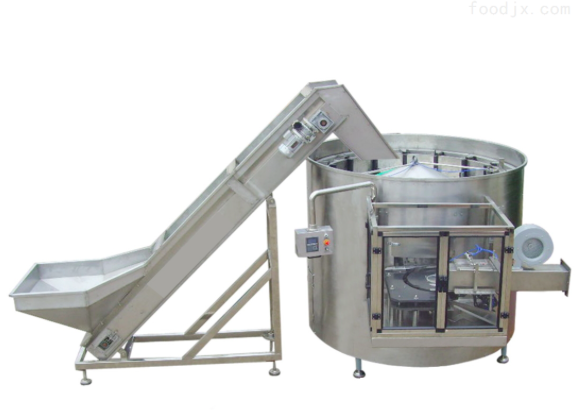

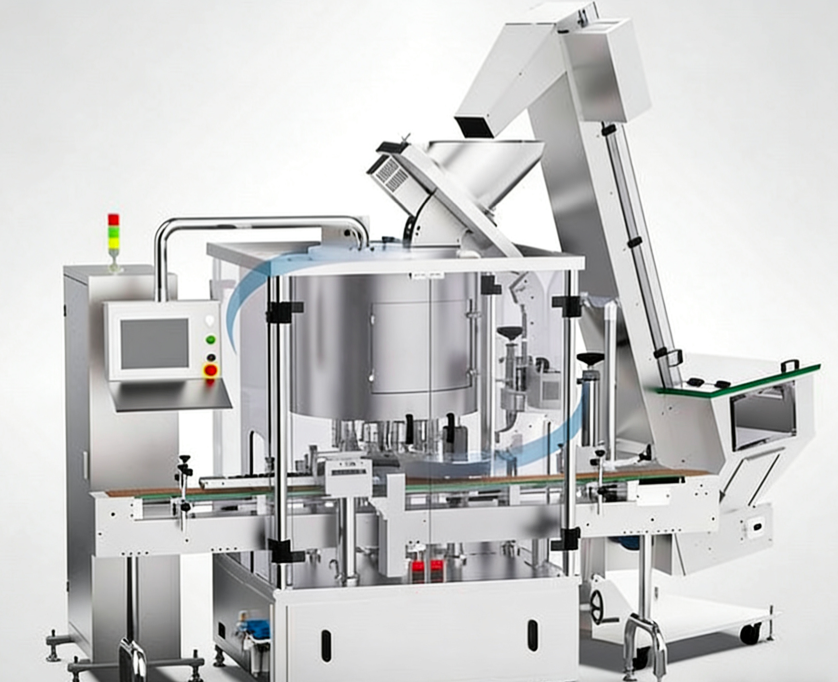

Detailed pictures for this Pump/Trigger Cap unscrambler and Feeding and capping machine/Pump/Trigger Cap Feeder and feeding machine:

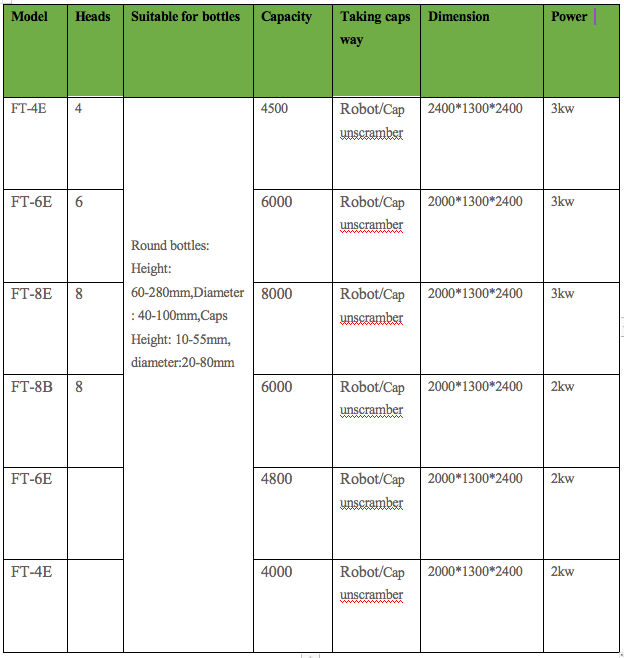

Parameters for this Pump/Trigger Cap unscrambler and Feeding and capping machine/Pump/Trigger Cap Feeder and feeding machine:
Other information for this Pump/Trigger Cap unscrambler and Feeding and capping machine/Pump/Trigger Cap Feeder and feeding machine:
The production parts adopt a quick-change structure, with approximately 20 minutes required for product switching between different items.
The cap-tightening torque servo control requires only parameter modification on the touchscreen, offering convenient adjustment and higher torque precision.
The electronic cam achieves head lifting and lowering, accommodating a wider range of bottle heights;
The claw tip adopts a quick-release structure, achieving a lid rotation efficiency of 98%.
Reserve MES communication interface.
