Basic information for this Rotary trigger capper/pump cap capping machine/Automatic trigger spray capper:
The automatic capping machine is designed for various material specifications and different types of caps, including spiral caps, anti-theft caps, child-resistant caps, and press-in caps. It features a constant torque rotating cap head with adjustable pressure settings. With its compact and rational structure, the machine can be easily integrated with other equipment into production lines, and a dust cover is available as an optional accessory. Key Advantages: The linear design facilitates smooth assembly of production lines while maintaining aesthetic appeal.
The host system employs imported frequency converters for stepless speed regulation.
Features for this Rotary trigger capper/pump cap capping machine/Automatic trigger spray capper:
The entire system employs PLC control.
The main motor is a variable-frequency stepless speed-regulating motor.
The outer frame of the device is constructed from stainless steel 304 material, meeting GMP compliance standards.
Upper cover part
The upper lid section employs a stepped lifting belt, enabling rapid bottle cap feeding with minimal noise.
The drop cover features a sophisticated design with no sliding back cover mechanism.
The upper cover employs variable frequency speed control.
capular portion

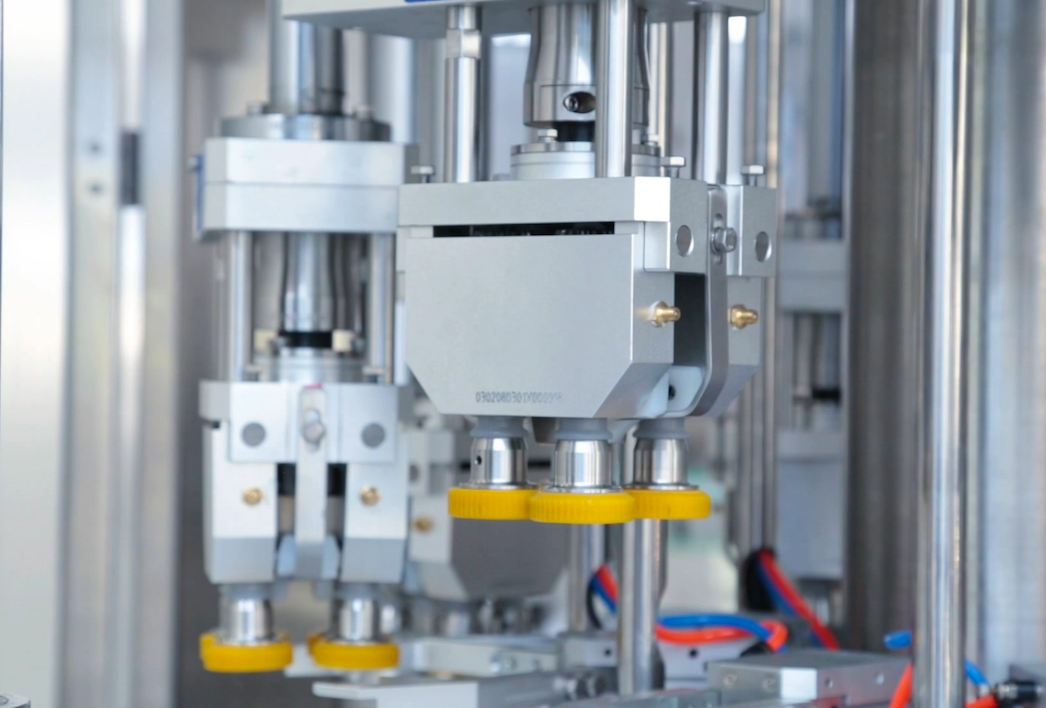

The magnetic rotating head is employed for cap rotation, where magnetic force adjustment enables torque control during cap turning, resulting in high pass rate and low noise levels.
Exclusion device
Automatic detection and rejection of defective products with issues such as improper lid rotation, absence of aluminum foil, or missing lids.
During a sudden power outage, exclude data arriving at the exclusion position
Advantages for this Rotary trigger capper/pump cap capping machine/Automatic trigger spray capper:
Continuous rotary operation with conformal screws for rapid and flexible bottle separation. The star wheel template guides bottles into the intermediate capping station for cap installation.
Cover rotation torque: Permanent magnet clutch;
Mechanical cam system allows rapid production switching for different bottle-shaped cams with varying specifications;
The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
Modular claw head design with quick-change structure (pin-type);
Suitable for bottle types: round bottles, square bottles, square bucket bottles with handles, regular and irregular bottle shapes;
Applicable cover types: spray gun covers, pump covers, round covers, etc.;
Modular template design enables rapid tool-free production switching.
Parameters for Rotary trigger capper/pump cap capping machine/Automatic trigger spray capper:
