The basic information for this Round Cap Unscrambler and Feeder/Trigger Cap Unscrambler and Feeder/Pump Cap Unscrambler and Feeder:
The quick-change mechanism enables product rotation within approximately 20 minutes. Featuring torque servo control, parameter adjustments are effortless via touchscreen interface for precise torque management. An electronic cam system ensures smooth head elevation, accommodating a wide range of bottle heights. The quick-release claw mechanism achieves 98% screw-capping efficiency, while the integrated MES communication interface supports seamless system integration.
Working principle for this Round Cap Unscrambler and Feeder/Trigger Cap Unscrambler and Feeder/Pump Cap Unscrambler and Feeder:
Continuous rotary operation with conformal screw for rapid and flexible bottle separation. The star wheel template guides the bottles into the intermediate capping station for cap-lifting operations.
1. Cap-tightening torque: controlled by independent servo motor;
2. Electronic cam with independent servo control for lifting each claw head;
3. The lifting motor adopts frequency conversion or servo motor, which can be synchronously controlled with the lid opener.
4. Modular claw head design with quick-change structure (pin-type);
5. Screw-free cutting design (optional);
6. Intermediate guide bottle assembly with bottle wheel and non-cutting design (optional);
7. Quick replacement design for outer retaining ring guard plate (optional);
8. Bottle-carrying device with non-cutting design (optional).
Features for Round Cap Unscrambler and Feeder/Trigger Cap Unscrambler and Feeder/Pump Cap Unscrambler and Feeder and capping Machine:
The control system coordinates mechanical action sequences through PLC programming :
Feeding stage: Open the one-way solenoid valve, and the cylinder retracts to create negative pressure for material suction.

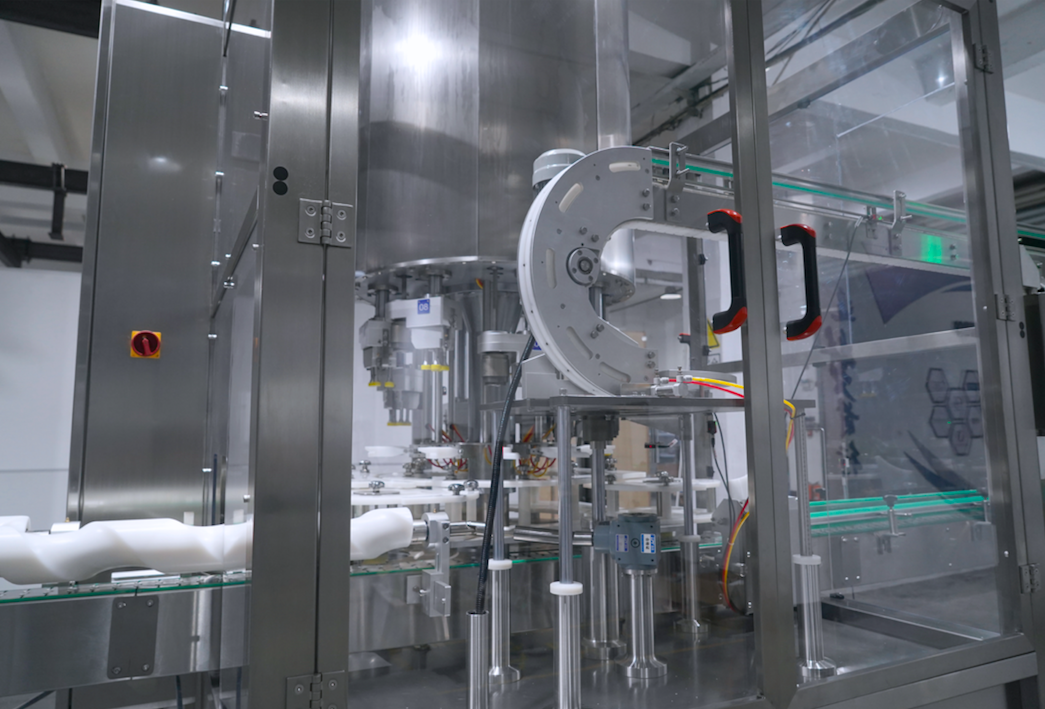

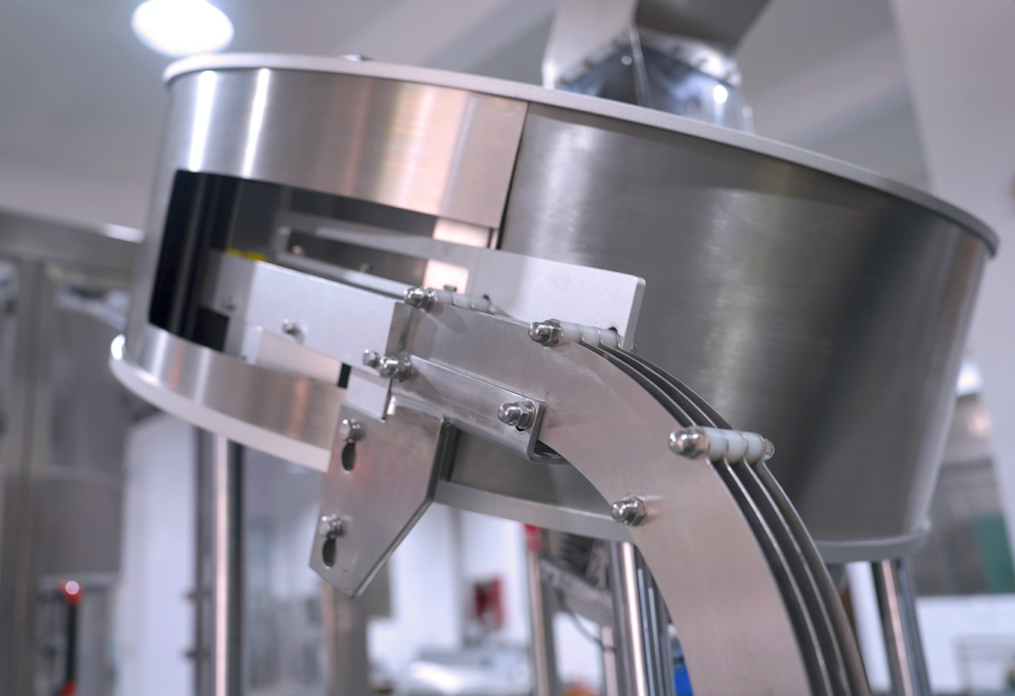

Detailed pictures for this Round Cap Unscrambler and Feeder/Trigger Cap Unscrambler and Feeder/Pump Cap Unscrambler and Feeder and capping Machine:
