Technology principle:
The core technology of Single Head Tracking/Tracing Capping Machine lies in its tracking system, which typically consists of sensors, controllers, and actuators. Sensors are responsible for real-time monitoring of bottle cap and bottle positions, transmitting this data to the controller. Based on preset programs and algorithms, the controller issues commands to the actuators to precisely adjust the positioning and force of the capping head, ensuring accurate bottle cap closure. Additionally, the tracking-type capping machine is equipped with advanced transmission systems such as servo motors or stepper motors to guarantee smooth and consistent capping processes.
Technical parameters for Single Head Tracking/Tracing Capping Machine:
Machine model:
FT-H2 Tracking Intelligent Rotating Cap Machine
Packaging speed:4000 bottles/hour
Equipment material: 304 stainless steel Total power: ≤4KW
Drive method: Servo transmission technology Air consumption: 15L/min
Sealing method: Sequential tracking screw cap; Number of screw caps: 1/2 heads
Sealing cap pass rate: ≥99% Drive power supply: 380V/50HZ
Scope of application: Daily chemicals, agricultural chemicals, chemical industry, food.
Dimensions: 2500x1700x2400mm (lengthxwidthxheight).
Cap-tightening torque: Servo-adjustable Machine weight: 800KG

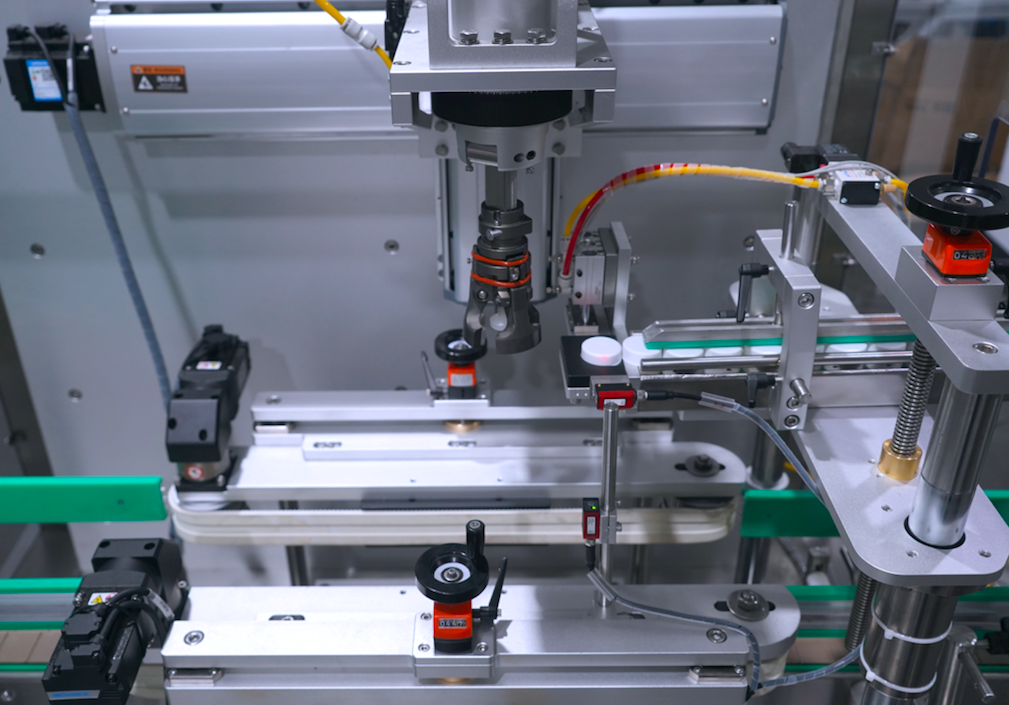

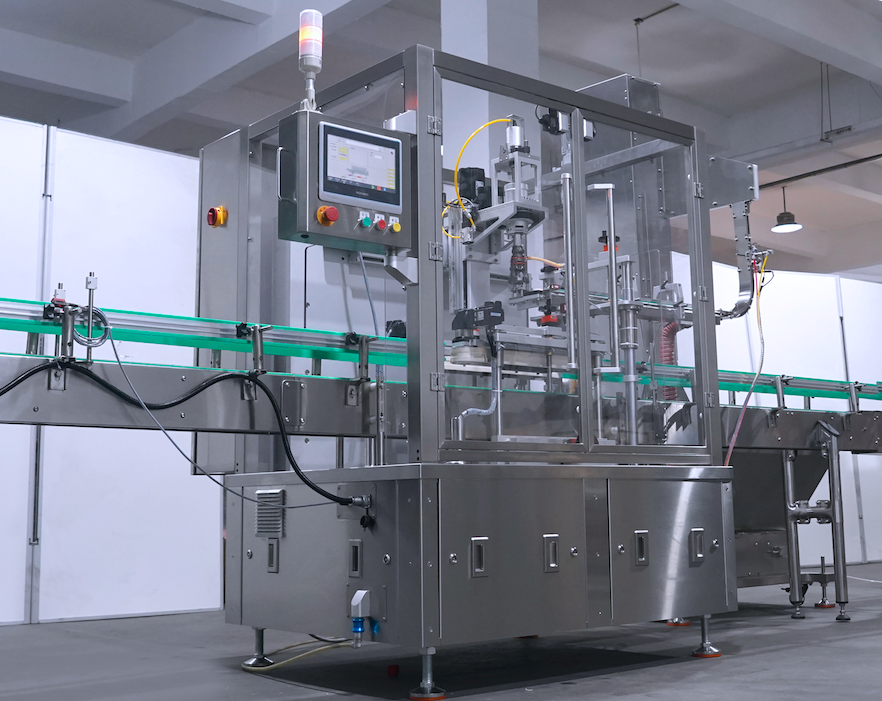

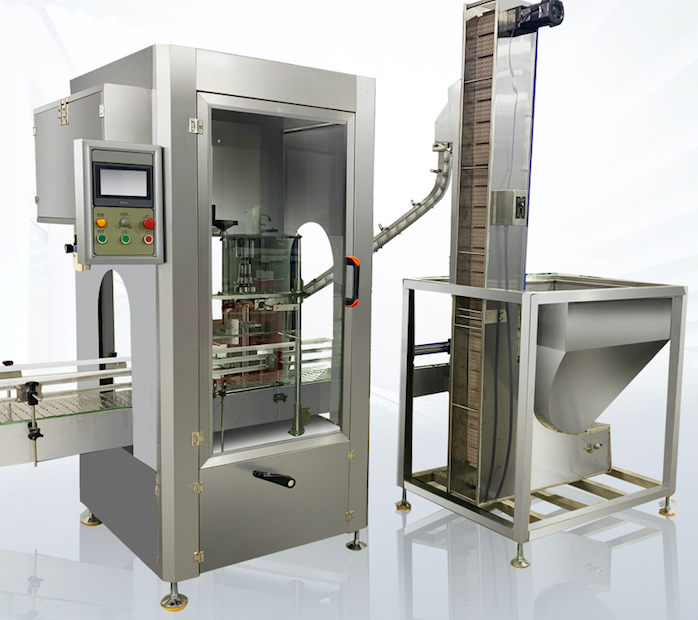

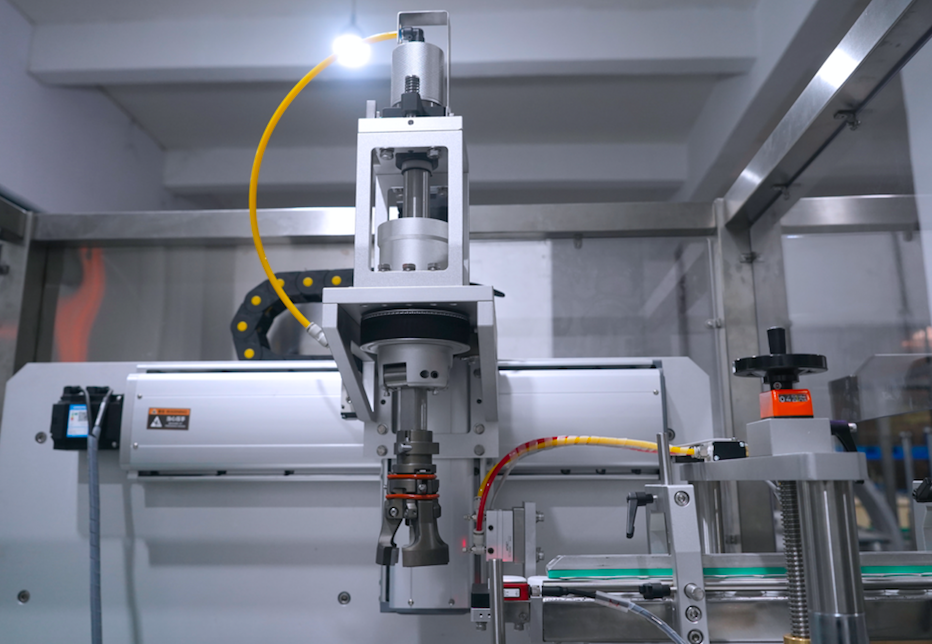

Manufacturing pictures for Single Head Tracking/Tracing Capping Machine:
