Technical Principle of this Single Station Shrink Sleeve Label Machine/ Bottle Neck and Bottom Sleeve Machine/ Sleeving Machine:
Precise Coordination of Mechanical and Electrical Control Systems
The core principle of a labeling machine operates through a five-step closed-loop process: “label supply – positioning – cutting – labeling – fixation.” First, the label roll is unwound via a tension control system to ensure smooth, wrinkle-free surfaces. A servo motor then drives a synchronous belt or chain to transport labels to the cutting station. Cutting tools (thermal or cold blades) are selected based on material properties (e.g., PVC or PET) to achieve precise, non-adhesive cuts. During labeling, robotic arms or vacuum cups guide labels onto containers along preset trajectories, with compressed air or mechanical rollers ensuring secure adhesion. The entire process is monitored in real-time by a PLC (Programmable Logic Controller), which dynamically adjusts motor speeds through encoder feedback to maintain labeling accuracy within ±0.5mm tolerance.
Core Components: Functionality and Synergy of this Technical Principle of this Single Station Shrink Sleeve Label Machine/ Bottle Neck and Bottom Sleeve Machine/ Sleeving Machine:
The performance of a labeler depends on the collaborative efficiency of its key components:
Label supply system: Includes a label unwinding roller, tension controller, and alignment correction device. The unwinding roller must support large-diameter labels (typically with a diameter ≥600mm). The tension controller maintains stable label tension using magnetic powder brakes or servo motors. The alignment correction device employs photoelectric sensors to continuously monitor label edge positions, automatically correcting deviations to prevent misalignment during labeling.
Cutting module: The hot-melt cutter achieves label melting by heating to 150-200°C, suitable for thermoplastic materials such as PVC; the cold cutter relies on high-hardness blades (e.g., tungsten steel) to cut PET labels, requiring high-frequency vibration or pneumatic pressure to enhance cutting efficiency. Cutting length can be set via PLC parameters, typically ranging from 20-150mm, accommodating various container sizes.
Parameters for this Single Station Shrink Sleeve Label Machine/ Bottle Neck and Bottom Sleeve Machine/ Sleeving Machine:

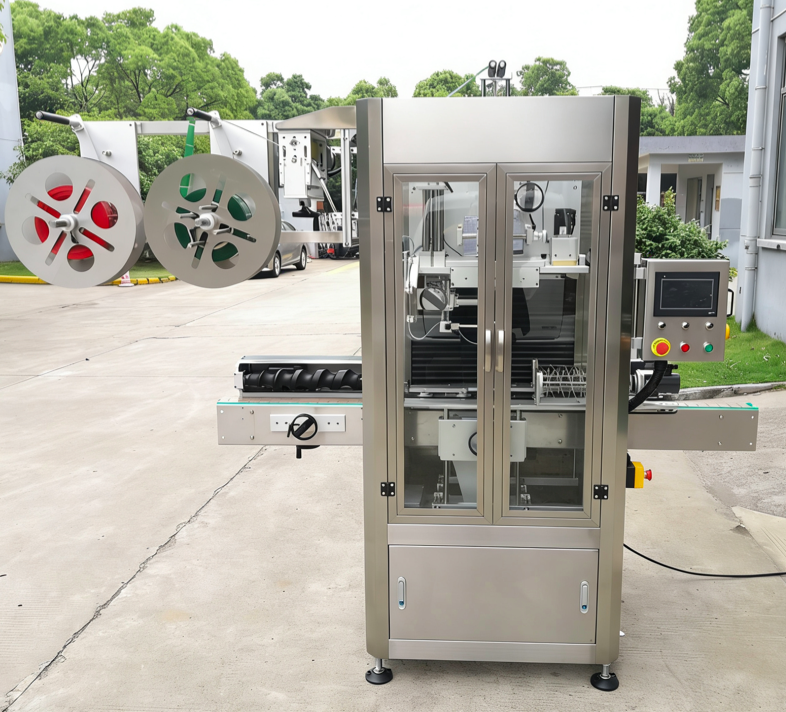

Detailed pictures for this Single Station Shrink Sleeve Label Machine/ Bottle Neck and Bottom Sleeve Machine/ Sleeving Machine:
