Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola／Beer Filling and can Sealing Machine in High Speed

Basic information for this Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola／Beer Filling and can Sealing Machine in High Speed:

From a technical perspective, can sealing machines primarily utilize mechanical transmission, pneumatic pressure, or electromagnetic principles to achieve sealing operations. The workflow typically involves several critical steps: can feeding, positioning, sealing, and can discharge. During the feeding stage, the machine accurately transports cans to the sealing position via conveyor belts or other transport systems. The positioning system ensures precise can alignment throughout the sealing process to guarantee quality outcomes. The sealing mechanism serves as the core component, employing heating and pressurization techniques to firmly bond sealing materials with cans, creating airtight seals. Finally, the sealed cans are discharged from the machine.
In practical applications, can sealing machines demonstrate remarkable versatility. Within the food industry, canned containers are extensively utilized for packaging carbonated beverages, fruit juices, beer, coffee, and other beverages, requiring specialized sealing equipment to complete final packaging processes. The chemical sector similarly employs can packaging for liquid products, relying on such machinery for secure sealing. Additionally, compact can sealing machines are commonly used in small-scale workshops and laboratories for product packaging and experimental sample containment.

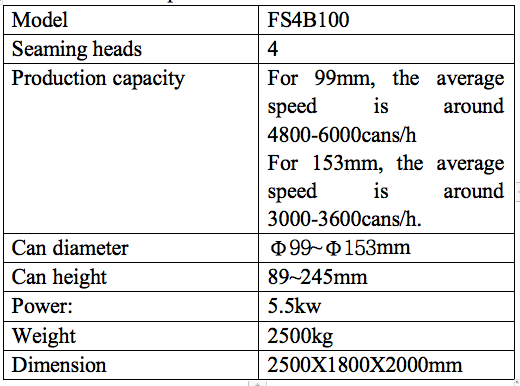

Parameters for this Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola／Beer Filling and can Sealing Machine in High Speed:

Main machine parts for this Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola／Beer Filling and can Sealing Machine in High Speed:

This machine is composed of working table, cans lifting, cam bracket，cans plate, seaming machine body, press head, seaming wheel, cover head, cans out pull wheel, drive system, electrical system and etc.

4、material

a．Drive part: high quality carbon steel

b．Conveyor parts: side plate is SUS304, the chain of the conveyor is SUS304, width is 190mm, and total width is 210mm. The minimum conveying height to ground is 900mm( if lower than this height, the motor cannot be installed), and adjustment for up is +50mm.

The seaming head: with Titanium seaming head.

d．chuck、track parts：SUS304

e．Machine base: high quality carbon steel with covered SUS304 for outside

Main Electrical configuration for this Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola／Beer Filling and can Sealing Machine in High Speed:

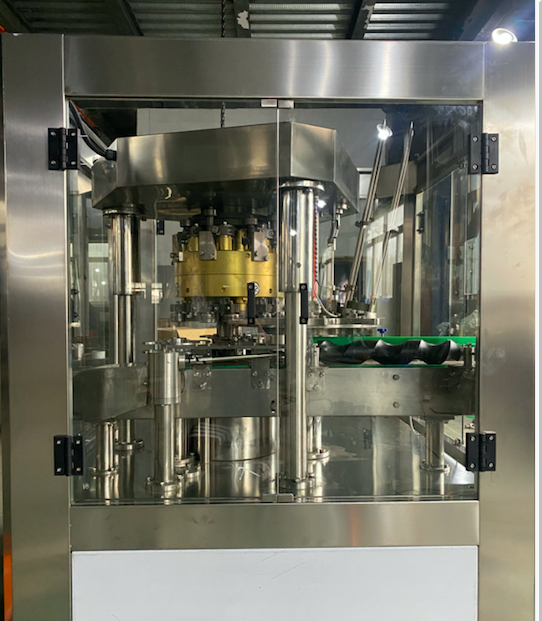

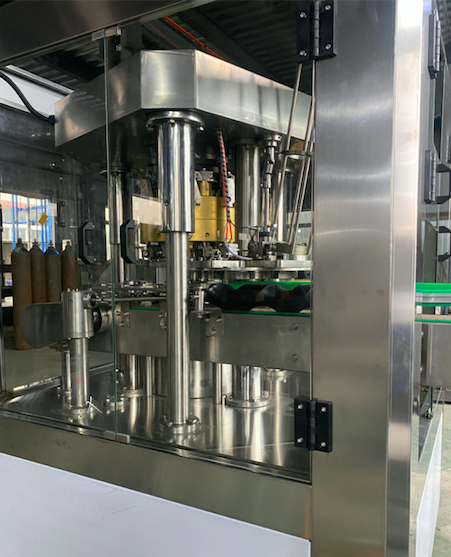

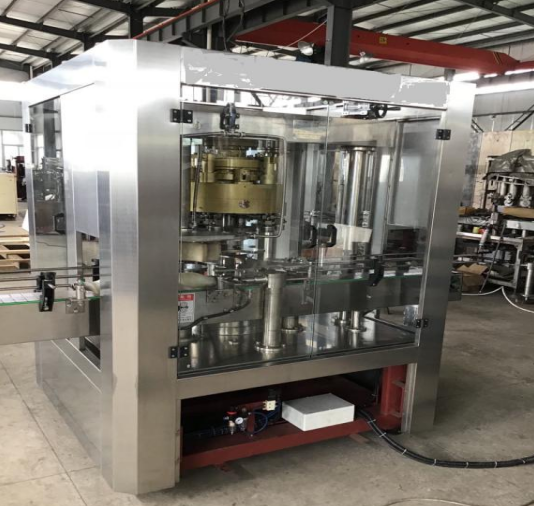

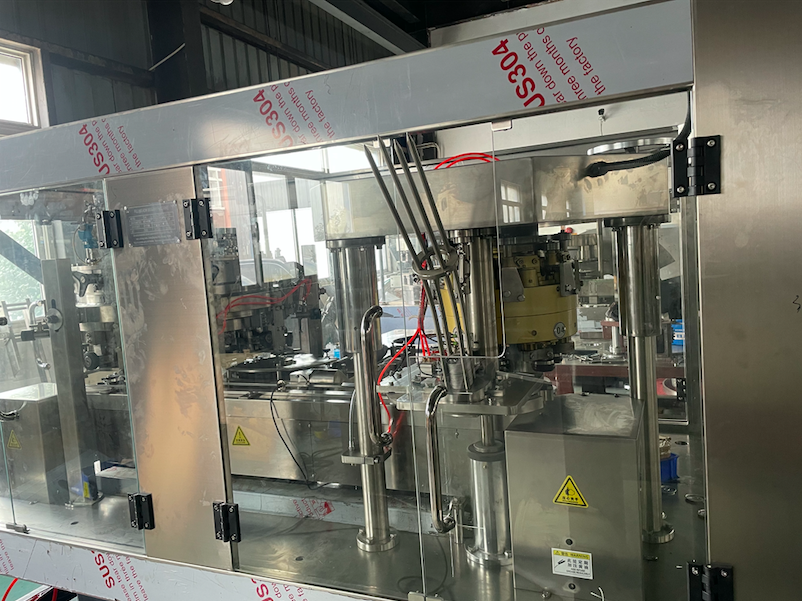

Products pictures for this Tin Can Filling and Cap Sealing Machine for Beer/Juice/Cola:
