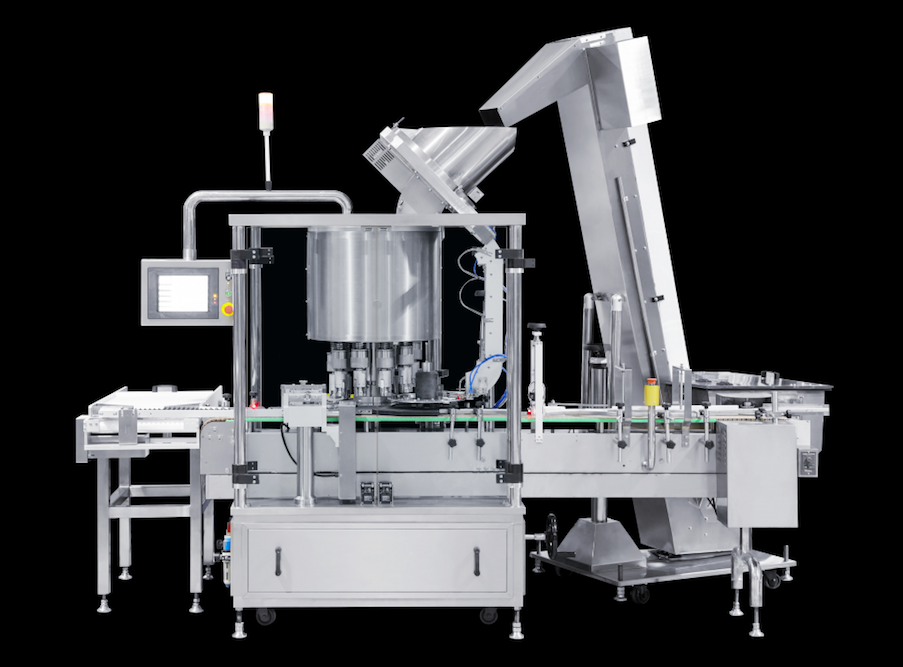

Operating Principle for Trigger Cap/Pump Cap Unscrambler and Elevator:
The bottle cap sorting machine utilizes the inherent misalignment between the center of gravity and geometric center of bottle caps for automated sorting. The system typically incorporates a lifting conveyor belt equipped with transverse baffles. When disordered bottle caps are conveyed to designated inclined sections, correctly oriented “positive caps” with their center of gravity within the baffles continue transportation, while misaligned “negative caps” with their center of gravity outside the baffles fall back into the return hopper under gravity, thereby achieving automatic sorting.
Automation Control: Modern equipment typically integrates programmable logic controllers (PLCs) and touchscreen human-machine interfaces to achieve functions such as frequency conversion regulation for sorting speed, automatic startup upon cap shortage, automatic pause upon full caps, and rapid switching between various bottle cap specifications.
Typical technical parameters for Trigger Cap/Pump Cap Unscrambler and Elevator:
Production capacity: approximately 3,600 bottles per hour.
Power supply: 380V±10%,50Hz.
Installed power: 1 kW (non-average power consumption).
Applicable air source: 0.6 MPa.
Working environment temperature: 0 to 35°C.
Equipment specifications: approximately 1800 mm in length, 1000 mm in width, 2800 mm in height, and weighing around 300 kg.
Bottle replacement time: typically less than 10 minutes.
Device Type and Functional Role for this Trigger Cap/Pump Cap Unscrambler and Elevator:
The bottle cap sorting machine serves as the front-end component of the filling and sealing production line, primarily responsible for organizing and systematically supplying bottle caps. It typically works in tandem with subsequent equipment such as screw cap machines, pressing machines, or locking machines to form a complete automated sealing process. Depending on integration levels, these machines can be categorized into standalone sorting units, lifting-type sorting machines integrated with lifting functions, and combined sorting-and-lifting machines that perform both sorting and cap placement operations.
