Features for this Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine:
The high-precision Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine employs a closed-loop control system combining “torque sensors with servo control.” Its technical features include micro-torque sensing and real-time closed-loop control, achieving an accuracy of ±1% to 3%; it utilizes a servo direct-control architecture with microsecond-level response capability; and implements dynamic lid-following and data-driven quality control. Compared to traditional mechanical or conventional servo control solutions, this approach demonstrates superior performance in accuracy, response speed, and adaptability.
Parameters for this Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine:
Associated machines for this Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine:

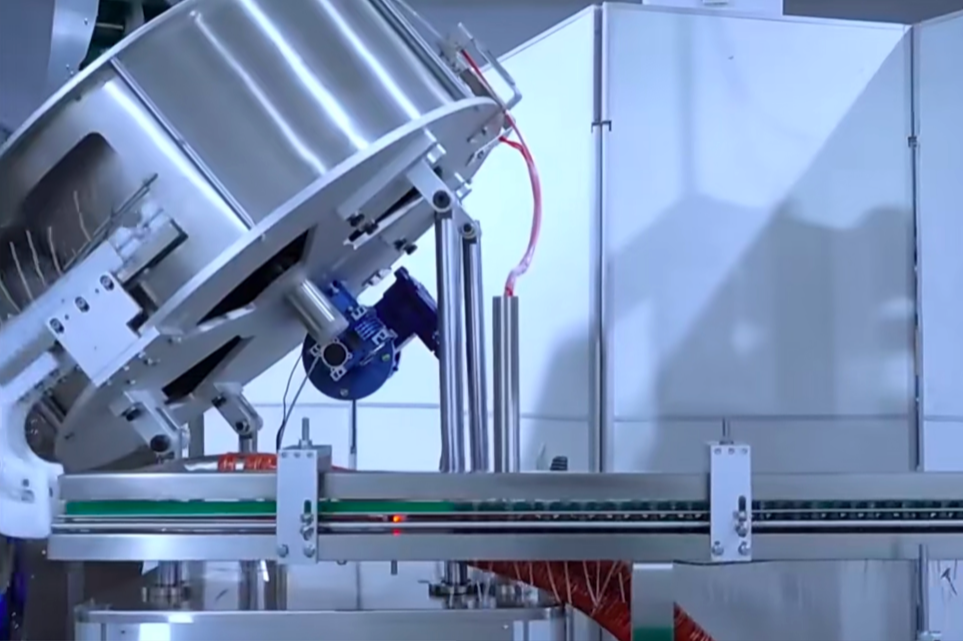

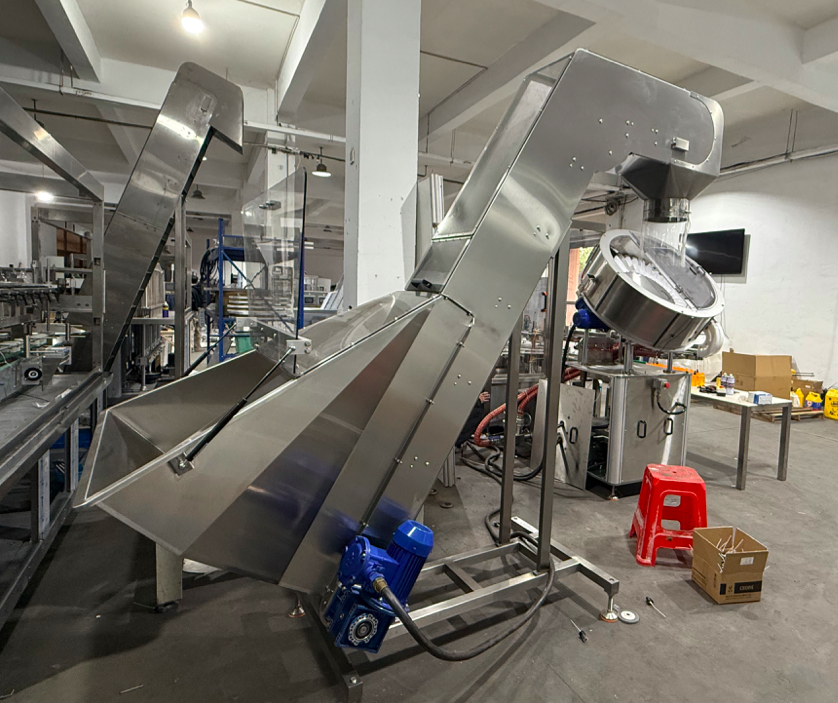

Dispenser unscrambler and cap elevator:
Characteristics for this Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine:
Sealing protection: The protective cover provides dual sealing for the lifting tube through a sealing gasket and sealing airbag, compatible with bottle mouths of different diameters to prevent filling splashing. After filling completion, the protective cover and sealing airbag form a closed protective barrier to prevent residual materials from contacting air, dust, scaling, or contaminating materials .
Buffer positioning: The spring buffer mechanism controls the descent speed of the filling tube within 0.5 m/s, reducing the container breakage rate to 0.02%.
Volume adjustment: The slider-type volume adjustment mechanism enables stepless regulation within the range of 100-50000 ml.
Regarding filling accuracy, servo motor drive and precision control technology are employed, achieving a filling accuracy of ±1%. For certain models in high-precision mode (e.g., below 1000ml), the measurement error is ≤±0.5%.
Configuration for this Big Capacity High Speed Automatic Dispenser Feeding and Capping Machine:
