Basic information for this Double Sides Self-Adhesive Labeling Machine for Flat Bottles:
Core operating principle: The device uses sensors to detect the product’s position, transmitting signals back to the control system. The system then activates the motor to position and release the label at the appropriate location for attachment, followed by flattening by the labeling mechanism.
Control System: The system employs a PLC control system and rotary encoder tracking technology, with some models featuring an intelligent touchscreen interface.
Positioning Technology: Utilizing bilateral rigid plastic synchronous guide chains and a spring-loaded pressing mechanism, this system eliminates bottle height errors and ensures smooth conveyance.
Automation Features: Comprehensive labeling coverage for all items, automatic label correction, automated label detection, and fault alarm functionality.
Material specifications: The device is primarily constructed from stainless steel and aluminum alloy, with its overall structure compliant with GMP production standards.

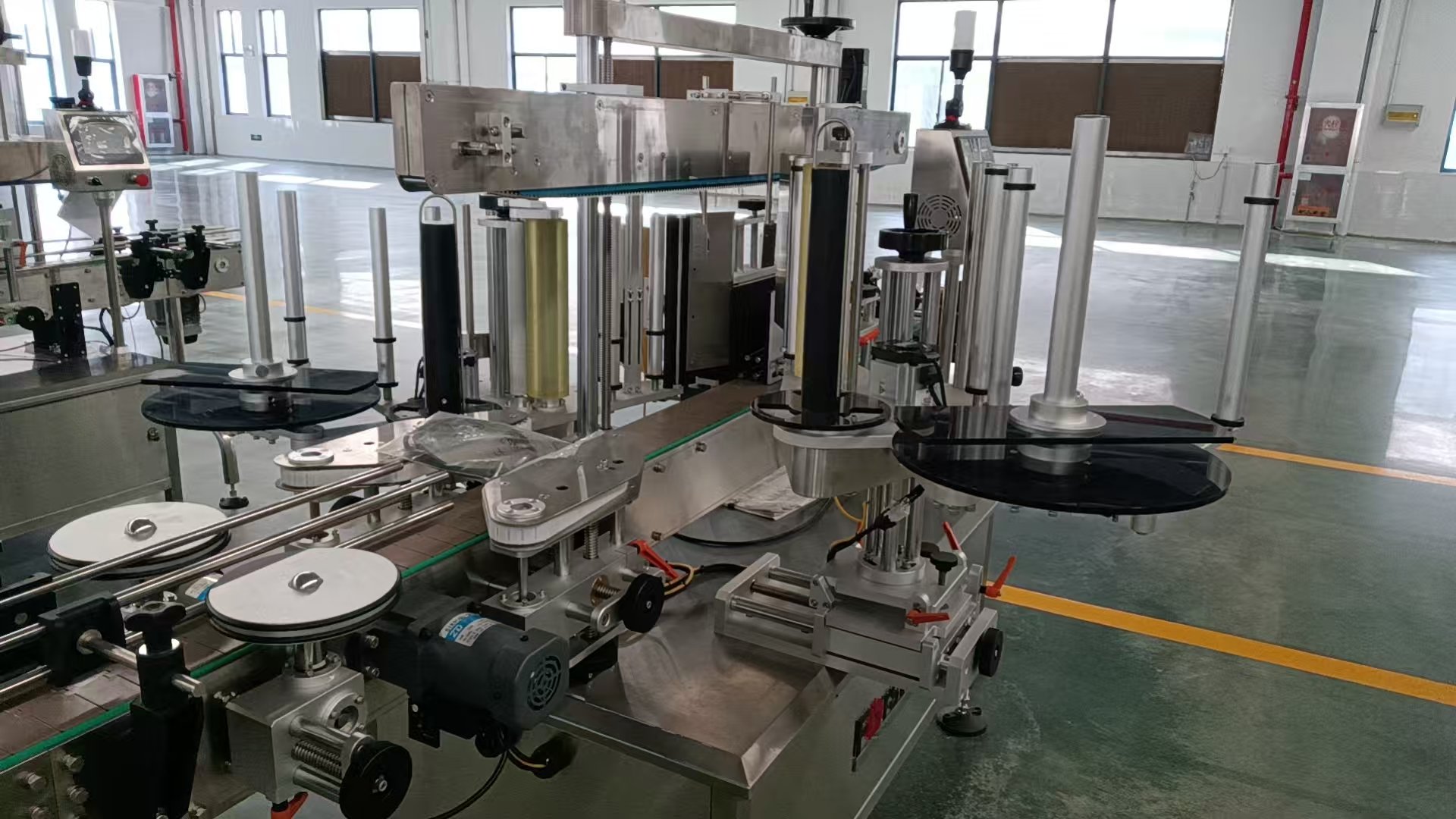

Machine detailed pictures for this Double Sides Self-Adhesive Labeling Machine for Flat Bottles:
Parameters for this Double Sides Self-Adhesive Labeling Machine for Flat Bottles:
Technical Principles and Core Structure for this Double Sides Self-Adhesive Labeling Machine for Flat Bottles:
A double-sided labeling machine typically consists of four main components: a label feeding system, a labeling system, a conveying system, and a control system. The label feeding system drives the label roller to rotate via a motor, separating the label from its backing paper using a label剥离 plate. The labeling system uses a vacuum head or pressure roller to attach the label and transfer it onto the product surface. The conveying system delivers products steadily to the labeling station using a synchronous belt or chain plate. The control system coordinates the operations of all components through a PLC or motion controller, ensuring precise labeling accuracy and speed. Some high-end models are also equipped with a visual inspection system that calibrates label position in real time, preventing misalignment or wrinkling.
Advantages for this Double Sides Self-Adhesive Labeling Machine for Flat Bottles:
The equipment operates stably with a single-unit production capacity of 50–300 bpm, and the pass rate for press cover and rotary cap assembly reaches ≥99.9%.
Performance advantages:
Working principle: Continuous rotary operation with conformal screws for rapid and flexible bottle separation.
