Basic information for this High Speed Screw Cap Servo Type Automatic Capping Machine:
Compared to traditional manual or semi-automatic capping machines, the fully automated four-wheel capping machine offers significant advantages such as higher efficiency.
The working principle of the fully automatic four-wheel capping machine combines mechanical transmission with servo control. The equipment typically consists of five main components: a conveying system, a cap supply system, a capping system, a detection system, and a control system. The conveying system delivers bottles to be capped steadily to the cap station; the cap supply system arranges the caps in an orderly manner using a vibratory feeder or cap feeder and transports them to the gripping position; the capping system is the core component, employing four-wheel synchronous capping technology that applies uniform torque to the caps via four independently controlled wheels, ensuring consistent tightening force without damaging the bottle mouth; the detection system monitors capping quality in real time using sensors (e.g., torque values, seal integrity) and feeds the data back to the control system; the control system adjusts the equipment’s operating parameters based on preset settings, achieving automated closed-loop control.
Parameters for this High Speed Screw Cap Servo Type Automatic Capping Machine:

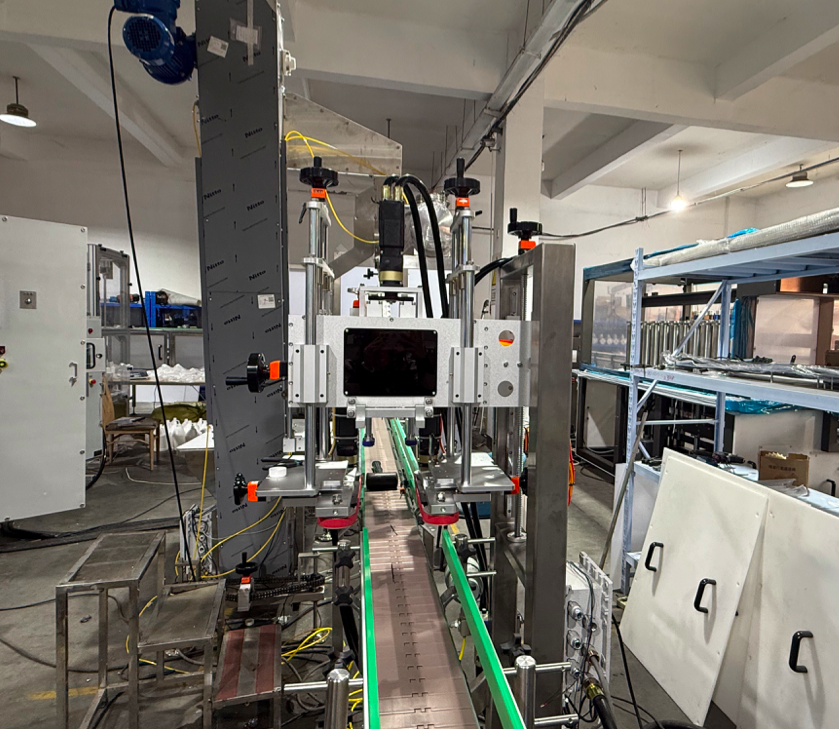

The machine details for this High Speed Screw Cap Servo Type Automatic Capping Machine :
Advantages for this High Speed Screw Cap Servo Type Automatic Capping Machine :
1.Programmable PLC controller and touchscreen operation ensure reliable system performance and user-friendly operation.
2.Achieve fully automated processes including automatic barrel feeding, automatic positioning, automatic filling, automatic lid closing and screwing, and automatic labeling.
3.The frequency can be set on the touchscreen according to production requirements, including a rapid coarse filling phase and a low-speed fine filling phase, to ensure stable filling accuracy.
4.PLC programmable control and a touchscreen human-machine interface system, it enables automated bottle feeding, filling, and dispensing processes. The system utilizes servo motor drive and dual ball screw transmission mechanisms, featuring 8 customizable filling heads compatible with bottle sizes ranging from 500ml to 5000ml. The production rate ranges from 1000 to 7200 bottles per hour (calculated based on 1000ml water volume).

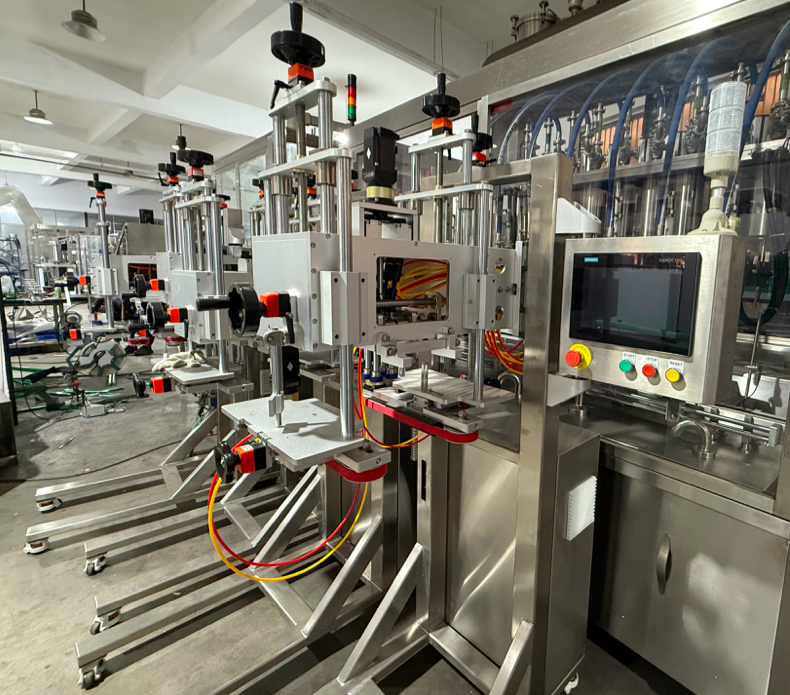

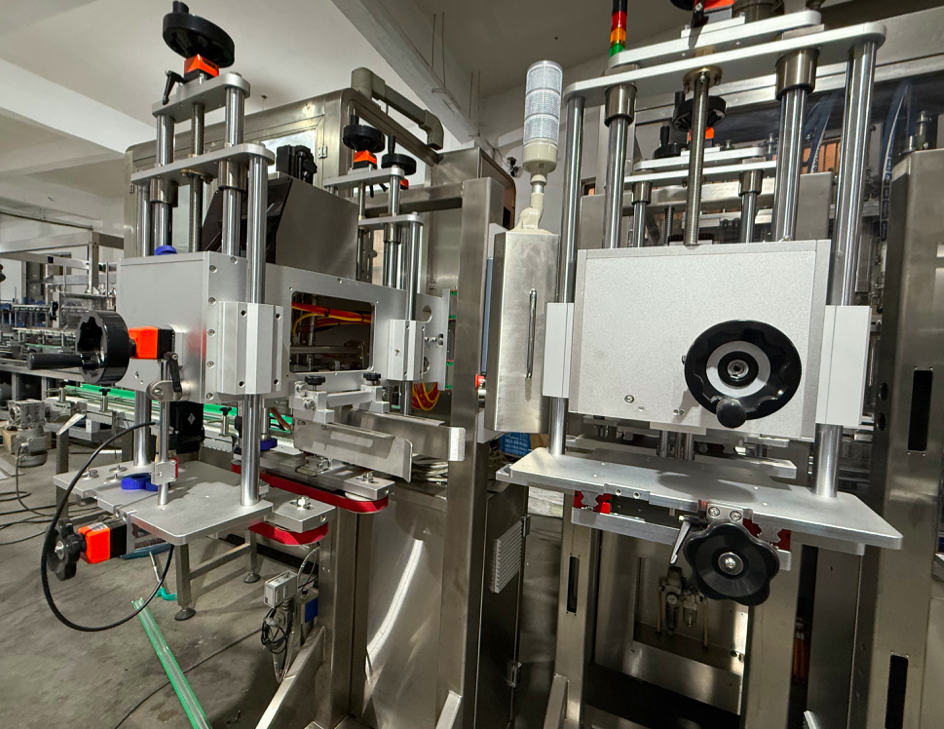

Connected machine pictures for this High Speed Screw Cap Servo Type Automatic Capping Machine :
