The working principle for Dispenser Cap/Trigger Cap/Pump Cap Elevator and Unscrambler:
The lid sorting mechanism utilizes the weight imbalance of the lids (specifically, the misalignment between the lid's center of gravity and its geometric center), allowing inverted lids to fall freely back into the storage bin under gravity during transportation, while properly aligned lids are conveyed to the sliding track system. Lids that meet the sorting criteria are lifted, while those that don't fall and require re-evaluation until they meet the requirements. The sorting process involves directly feeding sorted lids into the designated chute, where the conveyor belt sorts and elevates qualified lids onto the transport belt. The lid placement mechanism then attaches the sorted lids to the tops of bottles moving along the conveyor, followed by precise positioning using automated systems—completing the entire sorting and placement cycle. Controlled by a Siemens PLC programmable controller with touchscreen interface, the system features variable-speed sorting, reliable operation, automatic startup upon lid shortages, and automatic pause upon full capacity, achieving complete automation without manual intervention.

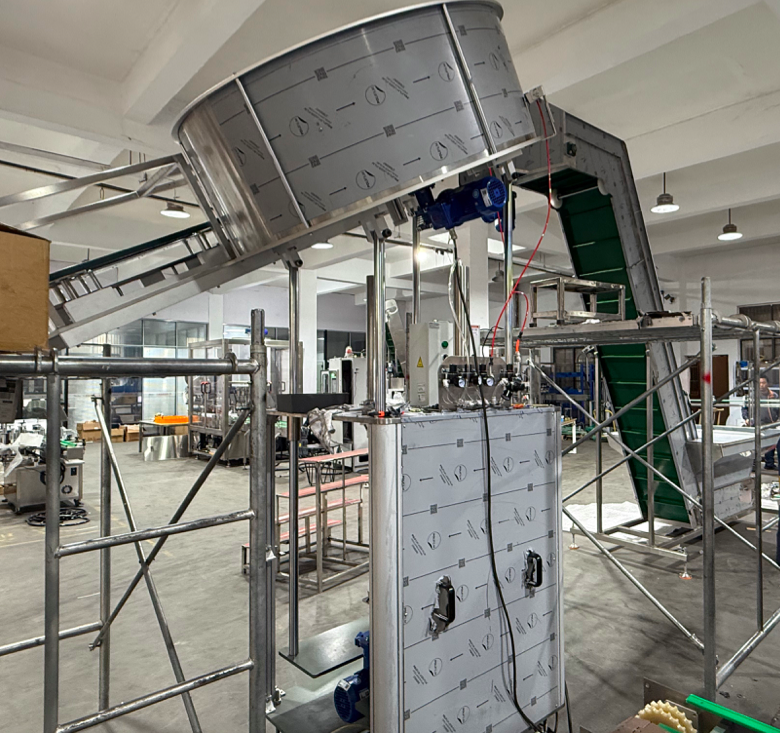

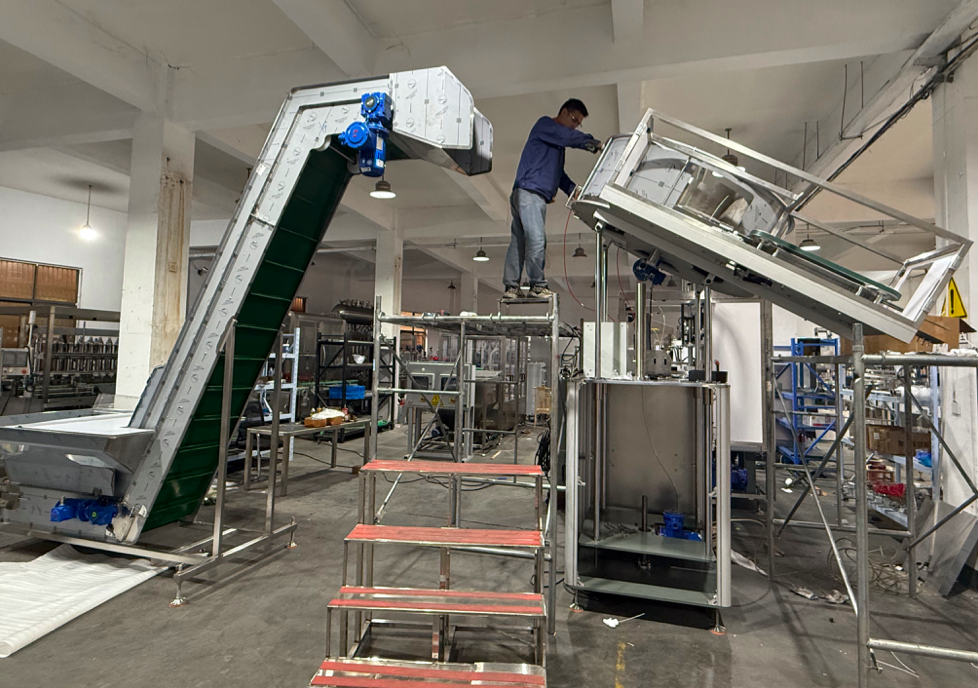

The pictures for this Dispenser Cap/Trigger Cap/Pump Cap Elevator and Unscrambler:
The characteristics for Dispenser Cap/Trigger Cap/Pump Cap Elevator and Unscrambler:
The capping system primarily employs a linear belt-carrying mechanism to achieve capping operations. By leveraging the inherent misalignment between the bottle cap’s center of gravity and its geometric center, the system allows inverted caps to fall freely back into the storage bin under gravity during transport, while upright caps are conveyed to the sliding track assembly. This design significantly reduces cap damage during processing. The support system provides structural reinforcement for the vertical capping mechanism and enables adjustable belt inclination angles to accommodate caps of varying heights. Through adjustable configurations and minimal tooling modifications, the equipment supports multiple cap sizes with rapid switching capabilities (cap type changes completed within minutes). The cap landing system utilizes curved guides to precisely position caps over bottle openings, ensuring seamless integration with fully automated belt-type capping machines. Featuring a simple yet rational structure, the equipment achieves high automation with automatic startup upon cap shortage and automatic pause upon full-cap levels, incorporating Siemens PLC programmable controllers and touchscreen technology from Germany.
Parameters for this Dispenser Cap/Trigger Cap/Pump Cap Elevator and Unscrambler:
