Basic information for this Fully-Automatic Shrink Sleeve Machine:
The labeling machine structure consists of the following components: The feeding unit is driven by a frequency converter to rotate the feeding motor, transporting label film material. The optical eye frame unit utilizes fiber-optic sensors to transmit signals, enabling the lower labeling servo motor to perform precise dimensional control during feeding. The drive system employs a dual-drive mechanism powered by the lower labeling servo motor, securing the central column and driving the labeling mechanism. The cutter head assembly features a synchronous pulley system operated by a servo motor; upon receiving signals from the bottle detection sensor, the cutter motor rotates the blade one full cycle to cut the label.
Parameters for this Fully-Automatic Shrink Sleeve Machine:
Working principle for this Fully-Automatic Shrink Sleeve Machine:
The labeling machine operates at high speed with excellent stability. Its compact design facilitates high-speed operation, while most components utilize universal standard parts. The enclosed design helps extend the equipment’s service life. The device offers high safety standards, featuring human-machine interaction considerations and an automatic detection and shutdown protection system. It has broad applicability: within an effective diameter range, it can handle packaging of circular, square, or other irregular shapes, as well as materials like glass and plastic. Operating costs are low, as the cutting blade—the primary wear component—is easy to replace. Packaging replacement is convenient thanks to its modular design, simplifying adjustment processes [13]. The mechanical structure exhibits high stability, with the entire unit constructed using stainless steel protective frames and aluminum alloy rigid frames. It accommodates various bottle types—including round, square, and oval bottles—and allows optional selection of bottle mouth or body fitting. The positioning accuracy is high, achieved through a fully mechanical transmission system and forced labeling mechanism.

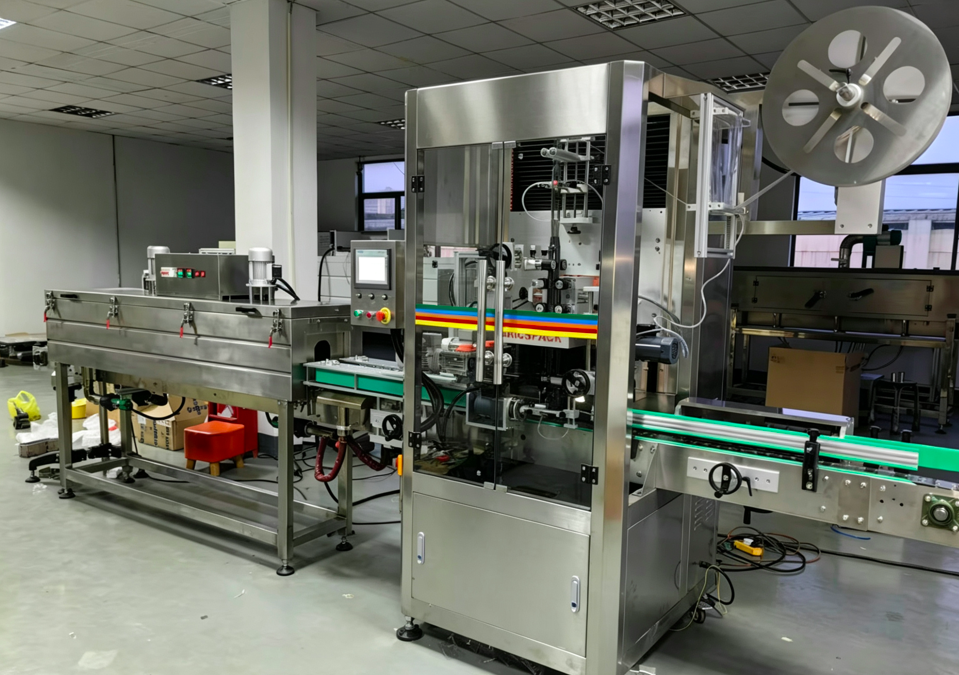

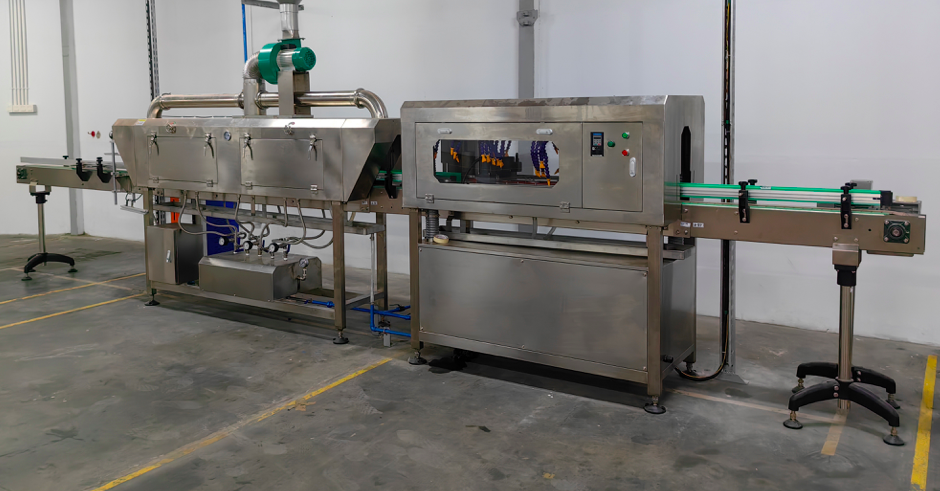

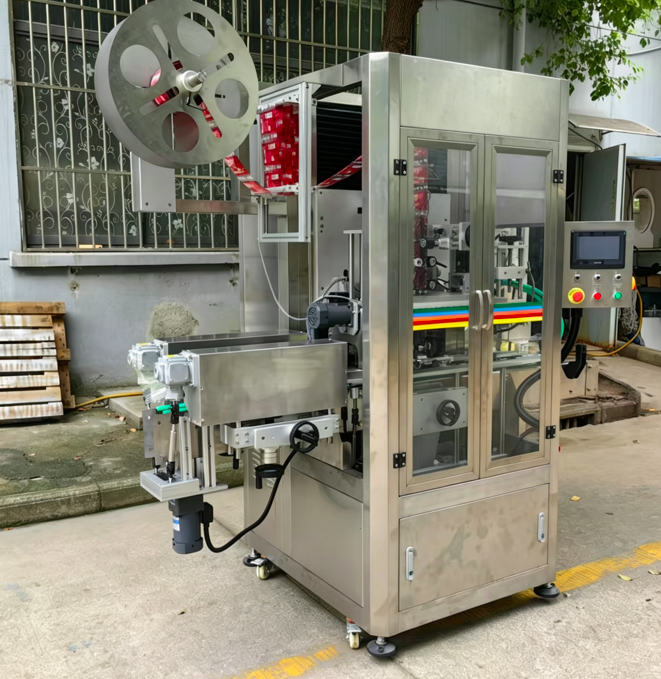

Machine pictures for this Fully-Automatic Shrink Sleeve Machine:
