Functional characteristics for High Speed Piston Type Filling Machine for Liquid Detergent/Paste Material:
After multiple upgrades, this machine-Linear Piston Type Filling Machine for Liquid Detergent, has become the most stable version of piston filling systems. It features precise quantitative filling through piston-driven mechanisms with low failure rates. The motor-driven piston cylinder design eliminates the instability of traditional pneumatic cylinder systems, allowing direct adjustment of overall and single-head metering settings via touchscreen. Compatible with various round, square, and flat containers, it can handle both aqueous solutions and viscous materials during filling processes.
Parameters for High Speed Piston Type Filling Machine for Liquid Detergent/Paste Material:
The High Speed Piston Type Filling Machine for Liquid Detergent/Paste Material , filling capacity can be adjusted through coarse adjustment, with each dispensing head capable of individual fine-tuning. The system features touchscreen operation and an additional Ethernet interface for user monitoring. An independently controlled residual liquid collection tray is installed below the filling head to prevent liquid contamination of bottle caps, while a bottle clamping mechanism ensures alignment between the dispensing nozzle and bottle mouth center. The filling head ascends in sync with liquid level elevation. During bottle type replacement, manual quick adjustment can be performed without tools.

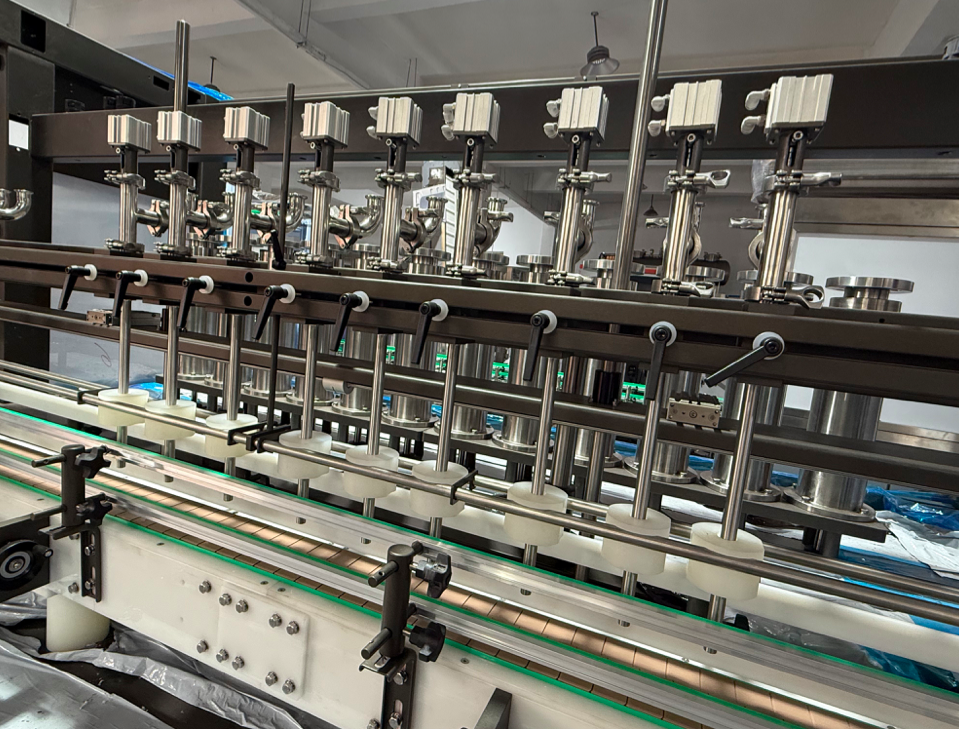

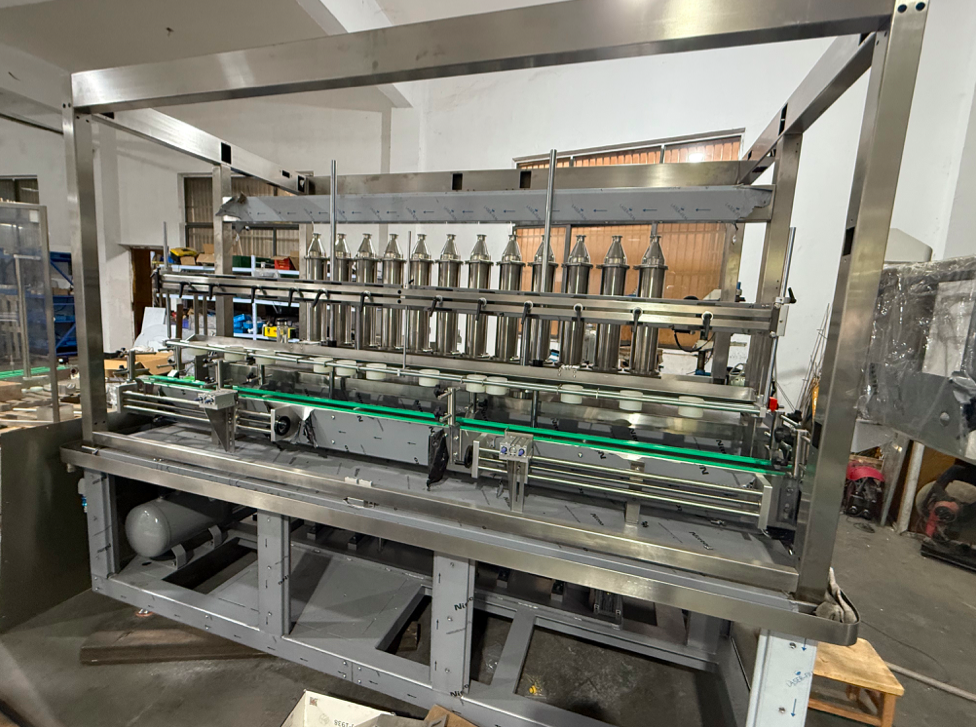

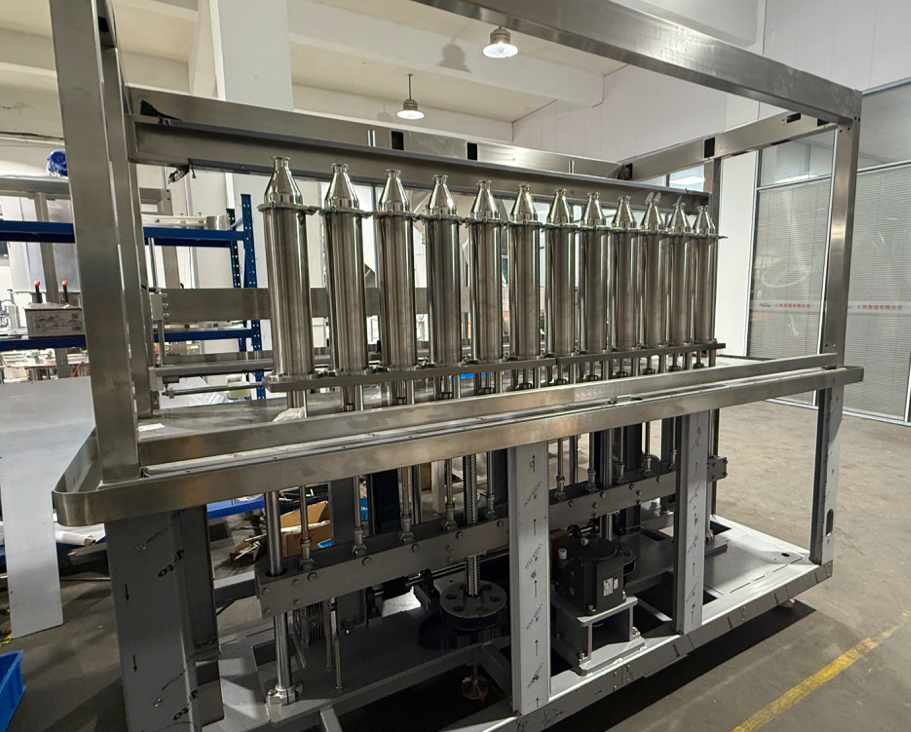

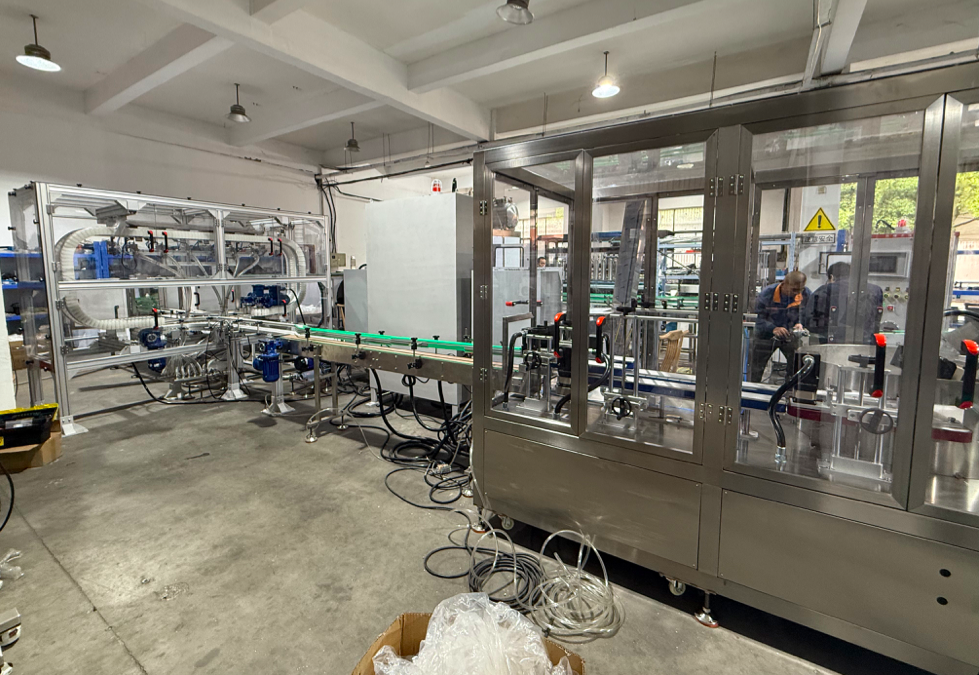

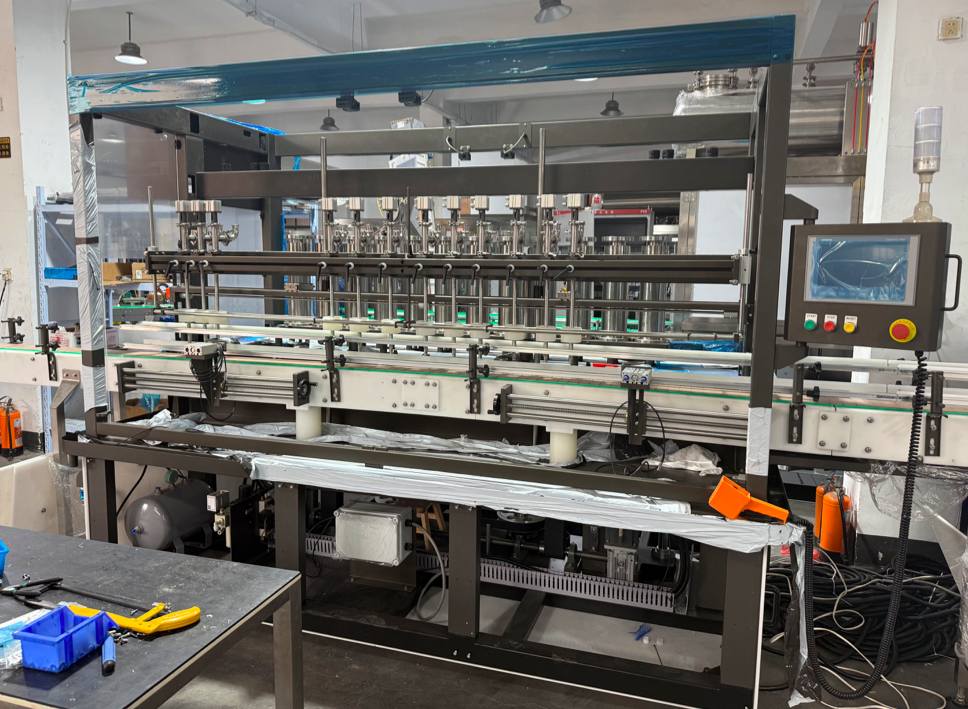

Detailed Pictures for this High Speed Piston Type Filling Machine for Liquid Detergent/Paste Material:
Advantages for this High Speed Piston Type Filling Machine for Liquid Detergent/Paste Material:
The equipment employs volumetric piston pumps, 316 stainless steel screw pumps, or pneumatic piston pumps for filling operations, achieving filling accuracy of ≤±1.5%. Equipped with PLC control systems or dual-CPU microcomputer control systems, it enables variable frequency speed regulation and automated operation, with filling parameters adjustable via touchscreen. Features include bottle rejection functionality, automatic counting capabilities, and a bottle position correction device. Filling volume adjustment utilizes eccentric cam mechanisms. Some models incorporate vacuum systems to minimize material leakage. The filling head adopts rotary valve piston pump design to reduce wire pulling and dripping.
